Product Details

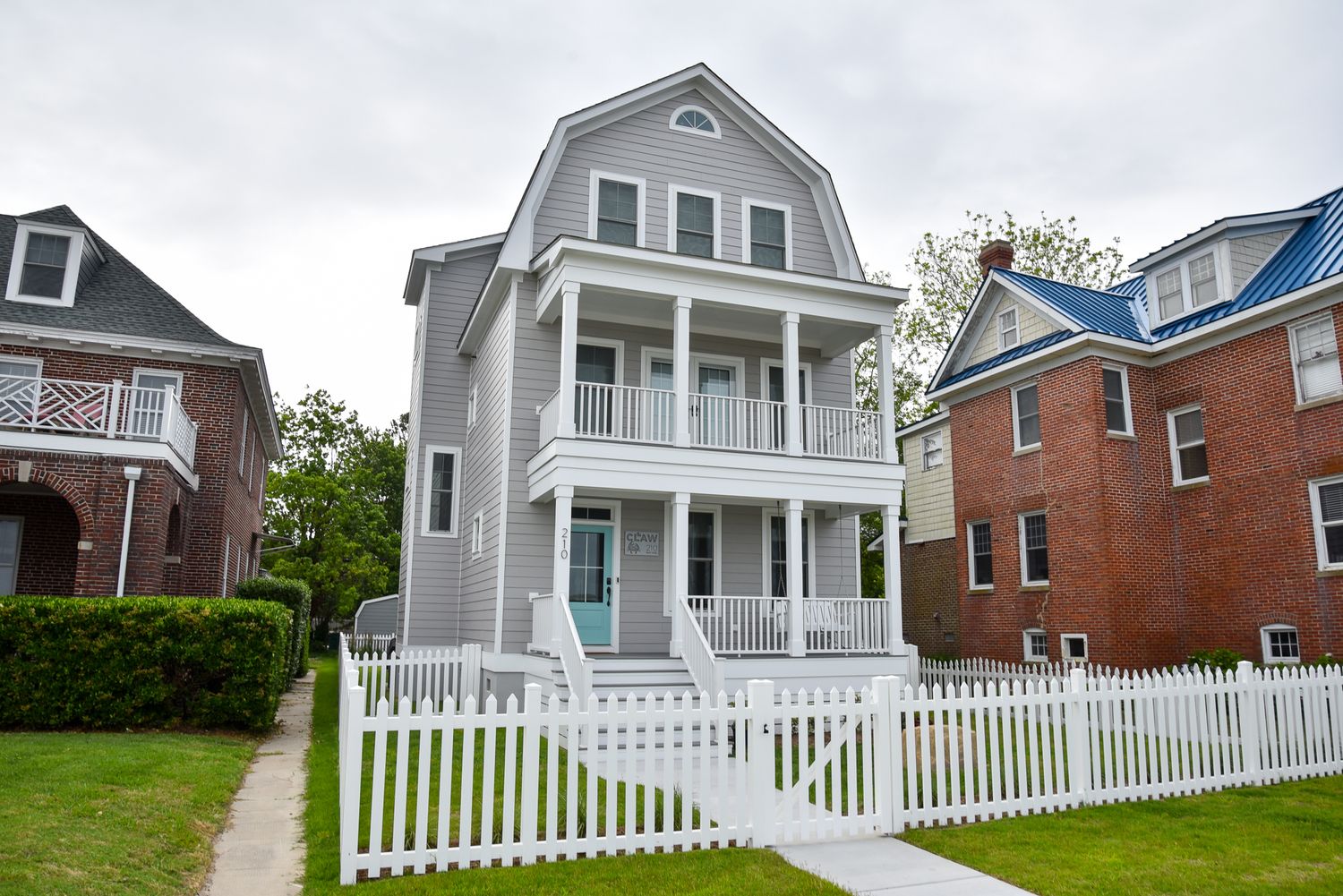

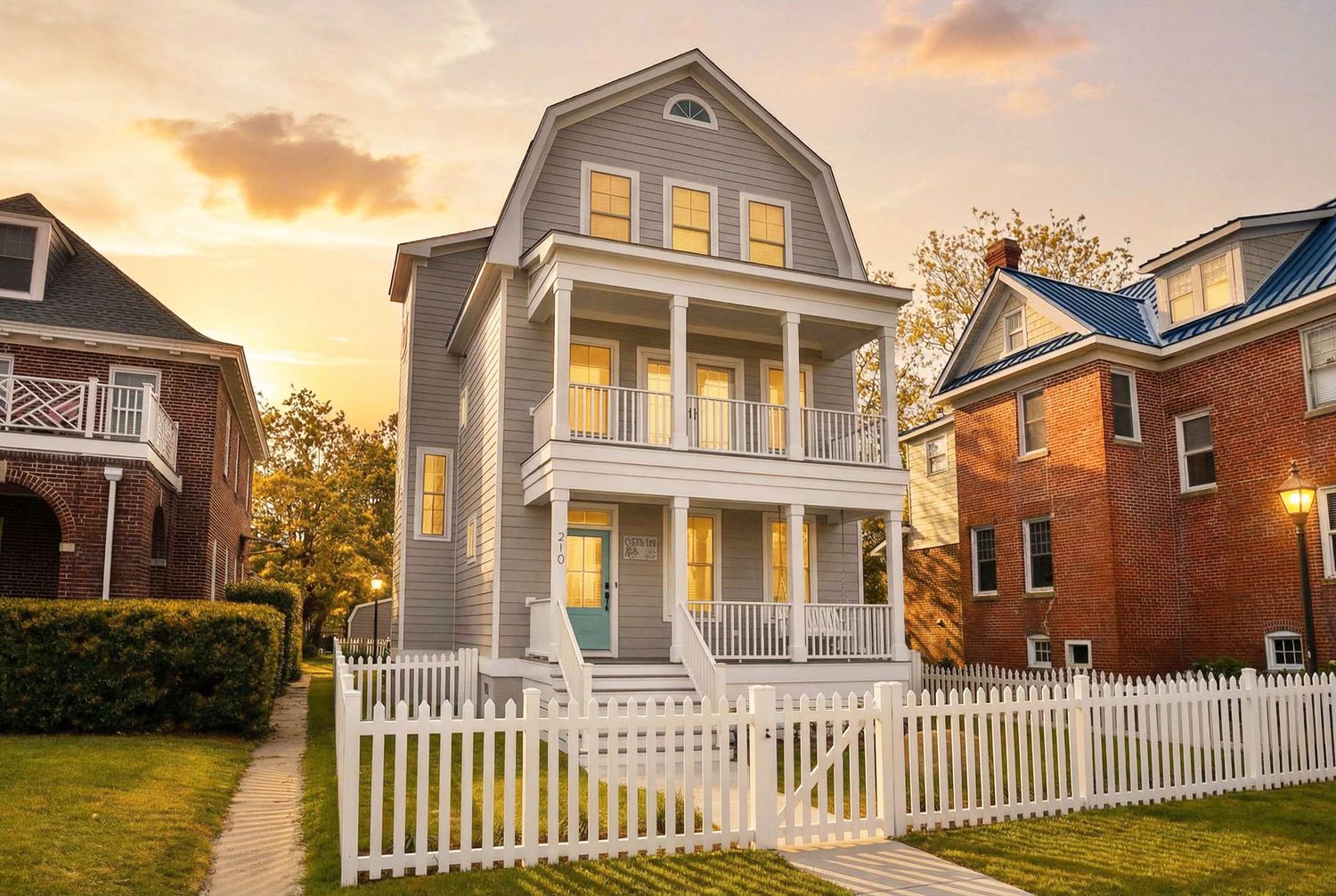

The Harbor Grace 406 is a coastal craftsman home plan that blends timeless charm with modern livability. Its welcoming front porch, detailed trim, and balanced rooflines create classic curb appeal, while the interior layout emphasizes light, flow, and functionality—perfect for today’s families.
The main level features an open family room anchored by a fireplace, flowing seamlessly into the dining area and chef’s kitchen. A central island, walk-in pantry, and custom cabinetry make the kitchen ideal for both entertaining and everyday routines. Outdoor living is expanded with a covered porch, screened porch, and rear patio. A private guest suite, mudroom, and home office add versatility to the first floor.

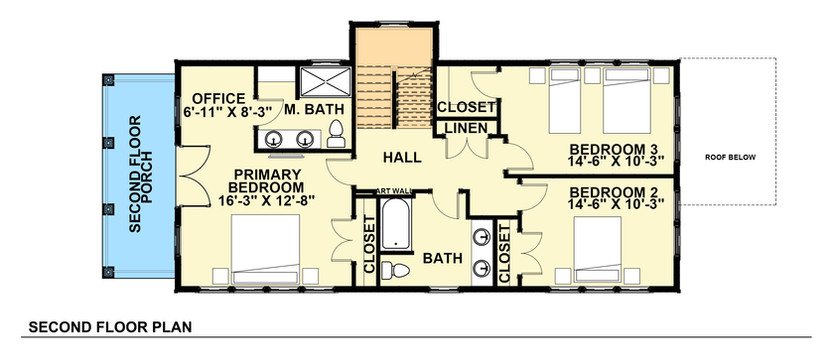

Upstairs, the owner’s suite offers a spa-inspired bath, dual vanities, and a walk-in closet. Secondary bedrooms are generously sized and share access to full baths. An upstairs laundry and bonus/media room provide extra convenience and flexible space for hobbies, play, or movie nights.
With its coastal detailing, family-friendly layout, and modern amenities, The Harbor Grace 406 delivers comfort and character for a wide variety of lifestyles and lot settings.
What's Included
-
Title sheet
-
Standard notes page
-
Foundation
-
First floor
-
Second floor (if applicable)
-
Roof plan
-
Elevations (all 4 sides)
-
General Notes and Details Pages
**A Required Release Form will be sent shortly after purchase, and must be signed and emailed back, in order to receive purchased plans**
What's Not Included
-
Architectural or Engineering Stamp - handled locally if required
-
Site Plan - handled locally when required
-
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
-
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
-
Energy calculations - handled locally when required
-
Electrical Plans and Full Building sections
Modify This Plan
Need to make changes?
We will get you a free price quote within 1 to 3 business days.
Key Specs

Bedrooms
5

Floor 1 sq. ft.
1,204 sq. ft.

Bathrooms
3.5

Floor 2 sq. ft.
1,009 sq. ft.

Total Heated sq. ft.
3,158 sq. ft.

Floor 3 sq. ft.
604 sq. ft.

Floors
3

Floor 4 sq. ft.
-

Garage
No

Location of Master
2nd Floor

Width
25' 9"

Depth
63' 1"
Floor Plans
