Product Details

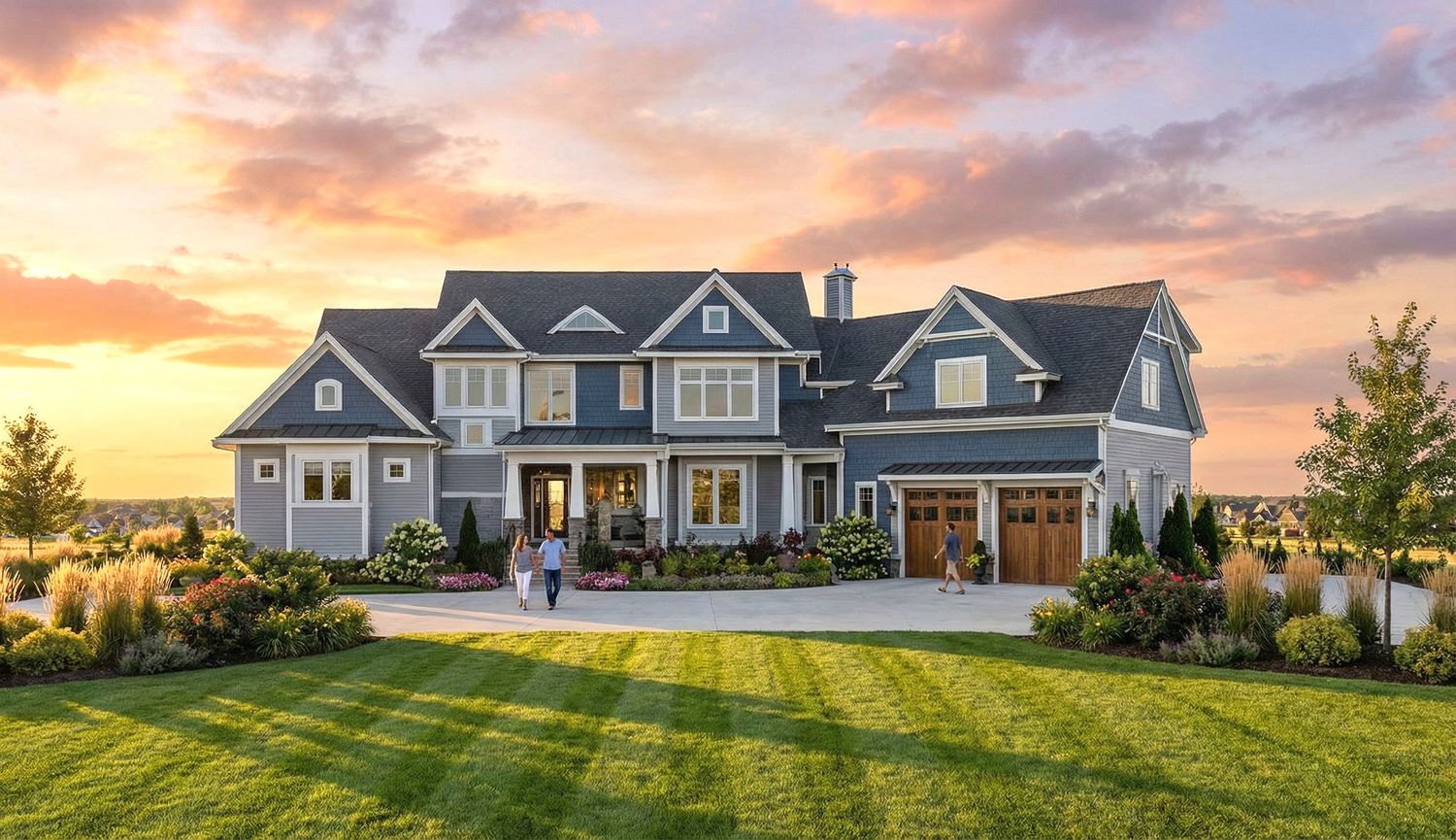

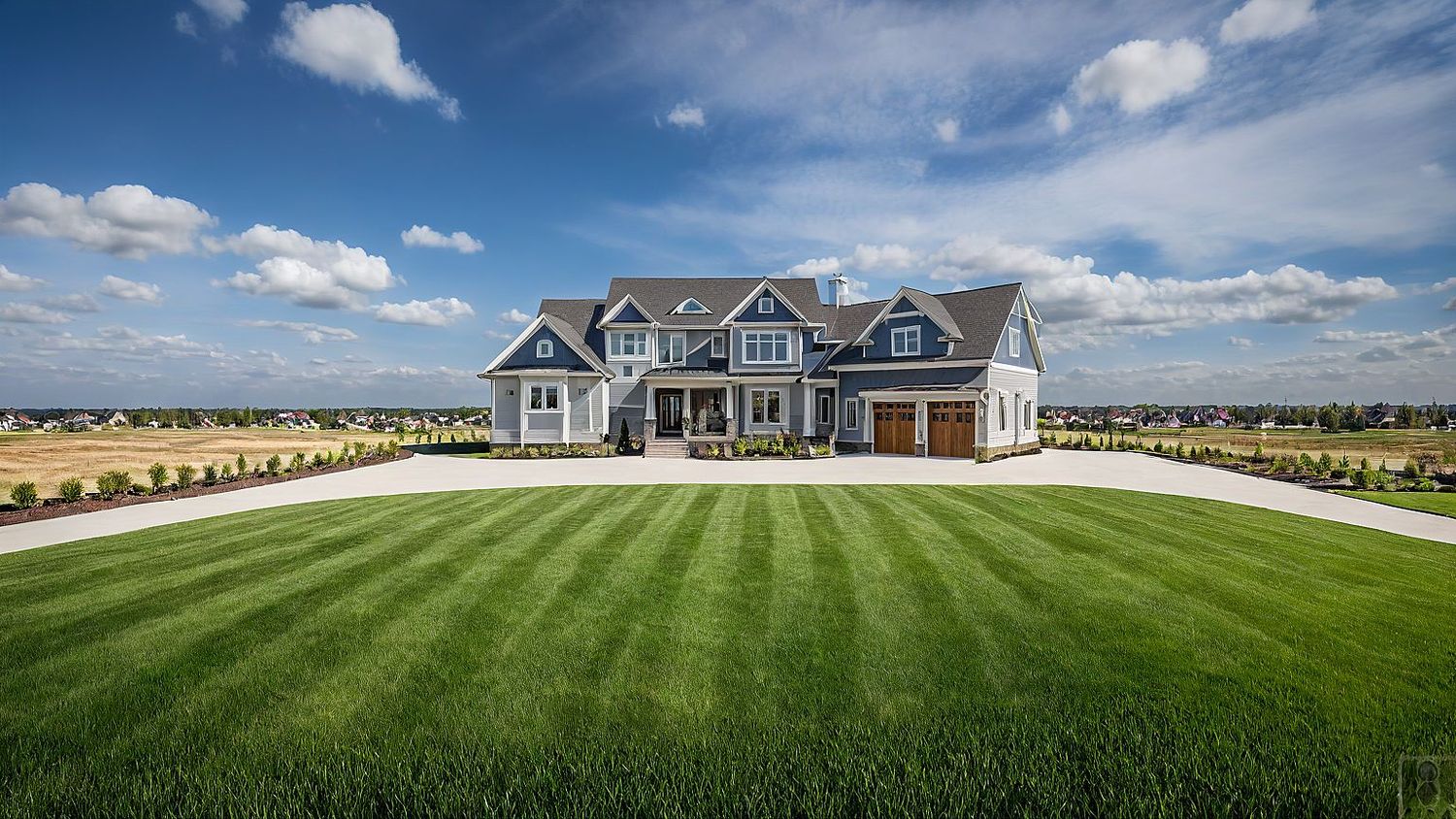

The Overton 606 is a luxury Craftsman coastal home plan designed with both family life and entertaining in mind. The main floor includes a private primary suite with dual baths, an open-concept family room centered on a fireplace, and seamless access to a covered deck.
Upstairs, a private suite with its own lounge and balcony creates a retreat within the home, while additional bedrooms and flexible storage meet everyday needs. With a walk-out basement expanding its living potential, The Overton 606 blends timeless curb appeal with functional design.
What's Included
-
Title sheet
-
Standard notes page
-
Foundation
-
First floor
-
Second floor (if applicable)
-
Roof plan
-
Elevations (all 4 sides)
-
General Notes and Details Pages
**A Required Release Form will be sent shortly after purchase, and must be signed and emailed back, in order to receive purchased plans**
What's Not Included
-
Architectural or Engineering Stamp - handled locally if required
-
Site Plan - handled locally when required
-
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
-
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
-
Energy calculations - handled locally when required
-
Electrical Plans and Full Building sections
Key Specs
Bedrooms
5
Floor 1 sq. ft.
1,054 sq. ft.
Bathrooms
5.5
Floor 2 sq. ft.
2,899 sq. ft.
Total Heated sq. ft.
5,613 sq. ft.
Floor 3 sq. ft.
1,660 sq. ft.
Floors
3
Floor 4 sq. ft.
-
Garage
Yes
Location of Master
1st Floor
Width
97' 2"
Depth
70' 3"
