The Redgate 3 - 163
Narrow but nice.... This 18'-8' wide home packs a whole lot into the home. Designed to fit on an infill lot this home has a lot going for it. The craftsman style design will complement any neighborhood. The public areas are very open, allowing for flexible layouts.

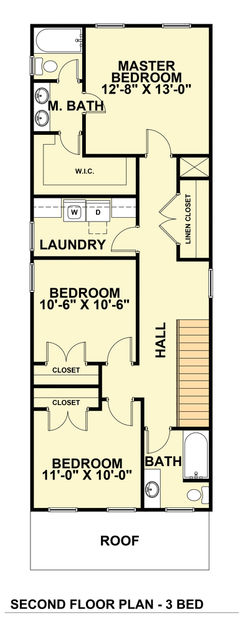

Upstairs, the bedrooms have large closets with the master bedroom having a walk-in closet. A full laundry room is provided also.
What's Included
-
Title sheet
-
Standard notes page
-
Foundation
-
First floor
-
Second floor (if applicable)
-
Roof plan
-
Elevations (all 4 sides)
-
General Notes and Details Pages
**A Required Release Form will be sent shortly after purchase, and must be signed and emailed back, in order to receive purchased plans**
What's Not Included
-
Architectural or Engineering Stamp - handled locally if required
-
Site Plan - handled locally when required
-
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
-
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
-
Energy calculations - handled locally when required
-
Electrical Plans and Full Building sections
Key Specs
Bedrooms
3
Floor 1 sq. ft.
667 sq. ft.
Bathrooms
2.5
Floor 2 sq. ft.
804 sq. ft.
Total Heated sq. ft.
1,471 sq. ft.
Floor 3 sq. ft.
-
Floors
2
Floor 4 sq. ft.
-
Garage
Yes
Location of Master
2nd Floor
Width
18' 8"
Depth
50' 0"
