Product Details

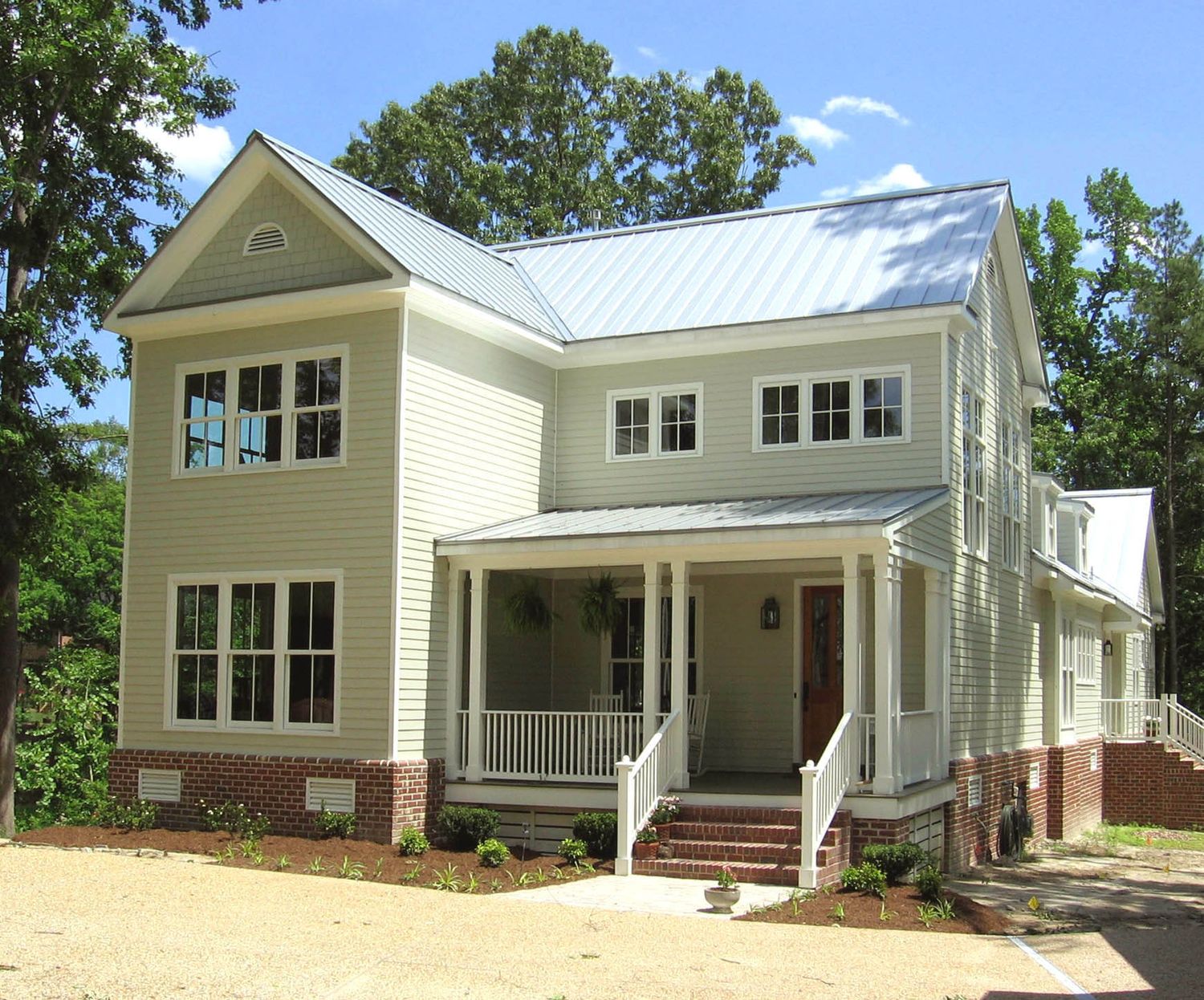

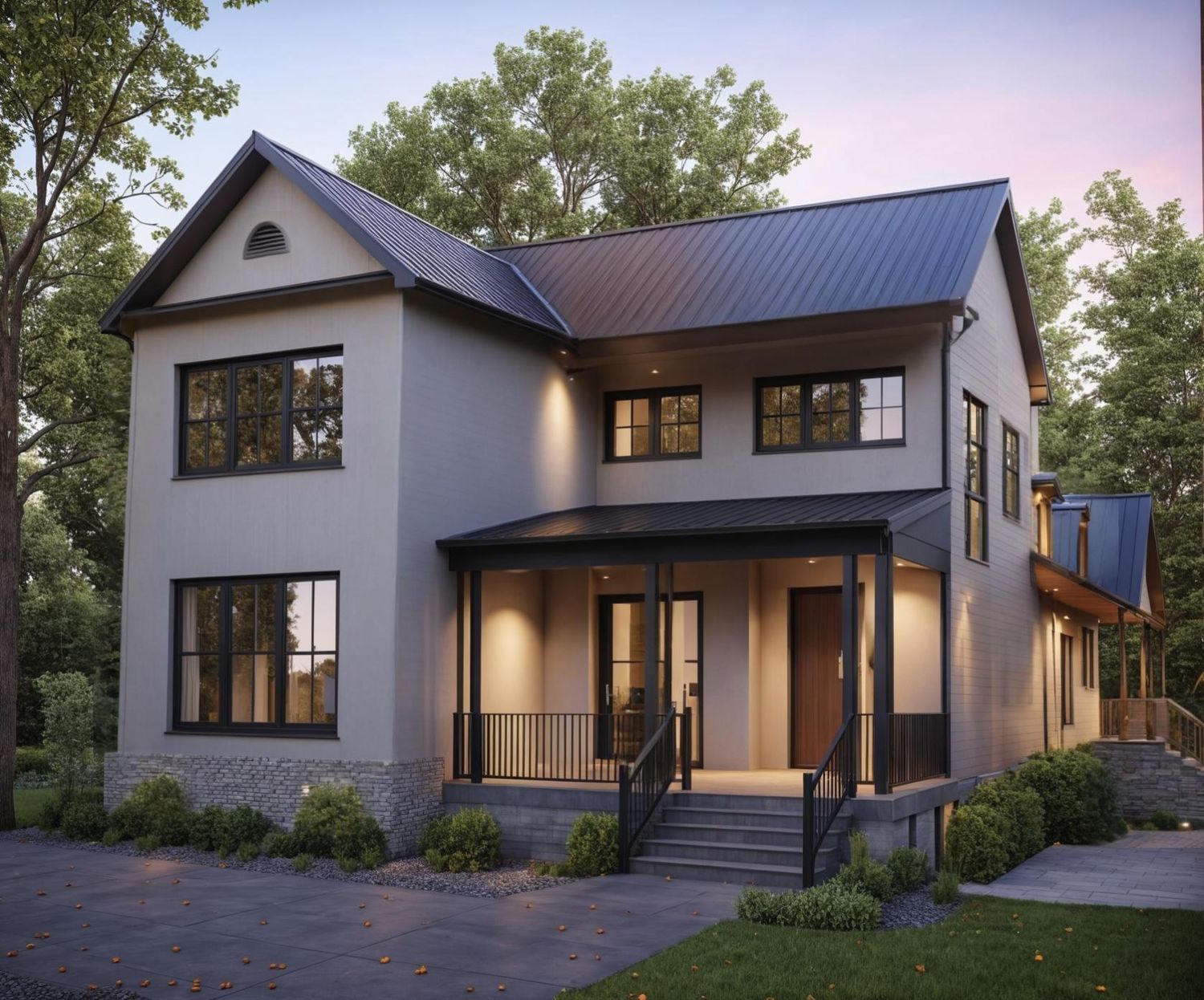

This 3 bedroom farmhouse plan has is great for a narrow lot. A detached garage comes with the plans and has a bonus room above that can be put to many uses.
The family room is right off the front covdered porch and has a fireplace and a light-filled den just off of it.
The kitchen and eating area are at the center of the home and with a screened porch steps away, you've got a great spot for dining. Without the bugs.
The master suite is in back and has a great walk-in closet and a roomy bath. Laundry is off the closet for extra convenience.

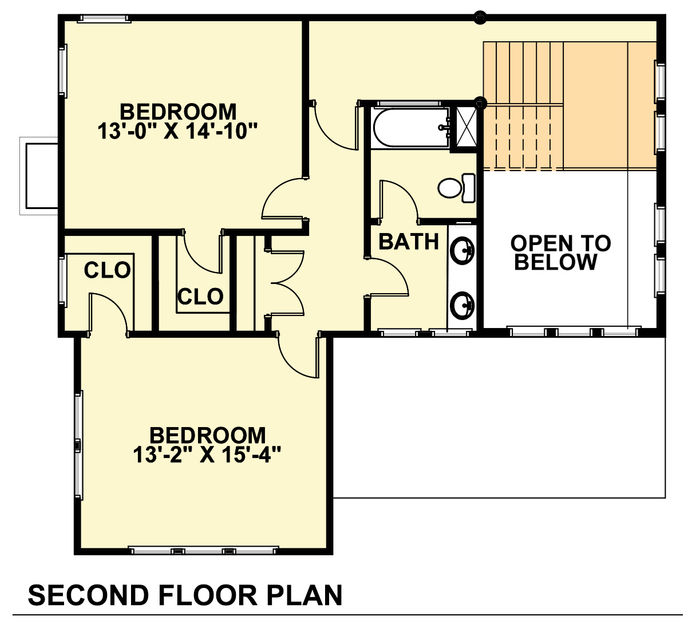

Two bedrooms are located upstairs and they share a hall bath. Both have walk-in closets.
What's Included
-
Title sheet
-
Standard notes page
-
Foundation
-
First floor
-
Second floor (if applicable)
-
Roof plan
-
Elevations (all 4 sides)
-
General Notes and Details Pages
**A Required Release Form will be sent shortly after purchase, and must be signed and emailed back, in order to receive purchased plans**
What's Not Included
-
Architectural or Engineering Stamp - handled locally if required
-
Site Plan - handled locally when required
-
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
-
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
-
Energy calculations - handled locally when required
-
Electrical Plans and Full Building sections
Key Specs
Bedrooms
3
Floor 1 sq. ft.
2,516 sq. ft.
Bathrooms
2.5
Floor 2 sq. ft.
743 sq. ft.
Total Heated sq. ft.
3,259 sq. ft.
Floor 3 sq. ft.
-
Floors
2
Floor 4 sq. ft.
-
Garage
Yes
Location of Master
1st Floor
Width
31' 0"
Depth
78' 0"
