Roof Pitch Explained for Homeowners

When you hear an architect or builder talk about roof pitch, they're simply talking about how steep your roof is. Think of it as a single, crucial number—often written like a fraction, such as 6/12—that tells a huge part of your home's story. This measurement goes way beyond looks; it shapes how your home handles weather, dictates the materials you can use, and even affects the final construction cost.

What Is Roof Pitch and Why It Matters

Imagine you're walking up a hill. A low pitch is like a gentle, easy slope, while a high pitch is a steep, dramatic climb. In the world of home design, that steepness is one of the most important decisions you'll make. It defines the character of your home and the strength of its most vital shield against the elements. Getting a handle on this concept is the first real step toward having confident, productive conversations with your design and build team.

The most common way we talk about pitch is with "rise over run." It's simpler than it sounds.

• Rise: This is the vertical part. It’s how many inches the roof goes up.

• Run: This is the horizontal part. For consistency, this number is almost always 12 inches (or one foot).

So, when a plan calls for a 4/12 pitch, it just means that for every 12 inches the roof extends horizontally, it rises 4 inches vertically. A steep 12/12 pitch? That’s a roof that goes up a full foot for every foot it goes across.

To help you get comfortable with the language, here's a quick rundown of the essential terms you'll encounter.

Table: Key Roofing Terms at a Glance

Term	Simple Explanation	What It Represents
Pitch	The steepness of the roof.	A ratio comparing rise to run (e.g., 6/12).
Rise	The vertical height.	How many inches the roof goes up.
Run	The horizontal distance.	A standard 12-inch measurement.
Span	The total width of the building.	The distance from one exterior wall to the other.
Rafter	A structural beam.	The angled board that supports the roof deck.

These are the building blocks for every conversation about your roof's design. Getting familiar with them now will make the whole process feel much more straightforward.

The Real-World Impact of Roof Pitch

This might all seem a bit technical, but its impact is incredibly practical. A roof's pitch directly influences everything from how it sheds water to its long-term structural health. In rainy or snowy climates, a steeper pitch is a huge advantage, letting precipitation slide right off. On the flip side, a lower pitch might be a smarter choice in areas with high winds, as it presents a smaller profile for gusts to catch. In coastal regions prone to hurricanes, for example, the connection between the roof and walls is critical, and knowing about things like the proper use of hurricane ties is essential for home safety.

A roof's pitch is the silent architect of your home's character. It determines whether your home whispers "modern ranch" with a low, subtle slope or shouts "classic Tudor" with a dramatic, steep incline.

Ultimately, choosing a roof pitch is a balancing act. You have to meet the functional needs of your climate while achieving the aesthetic you've been dreaming of. It also narrows down your material options—asphalt shingles, for instance, have minimum slope requirements to keep water out. And yes, it affects the budget. Steeper roofs mean more materials and require specialized safety gear for the crew, which adds to the cost. By understanding this core concept, you’re putting yourself in the driver's seat for the entire design and build journey.

Calculating and Understanding Roof Pitch

While "rise over run" gives you the basic language for roof pitch, the next step is getting comfortable with how it's actually calculated and shown on a set of plans. This isn't about dusting off your old trigonometry textbook; it’s about knowing the three common ways contractors and architects talk about this critical measurement.

Once you know the lingo, you can read blueprints with confidence and make sure your vision comes across perfectly.

The most common way you'll see pitch noted is the standard rise over run ratio, almost always written as X/12. As we’ve talked about, this just means for every 12 inches the roof goes back horizontally (the run), it rises vertically by ‘X’ inches. A 6/12 pitch is a classic, moderate slope, while a 12/12 pitch creates a striking 45-degree angle.

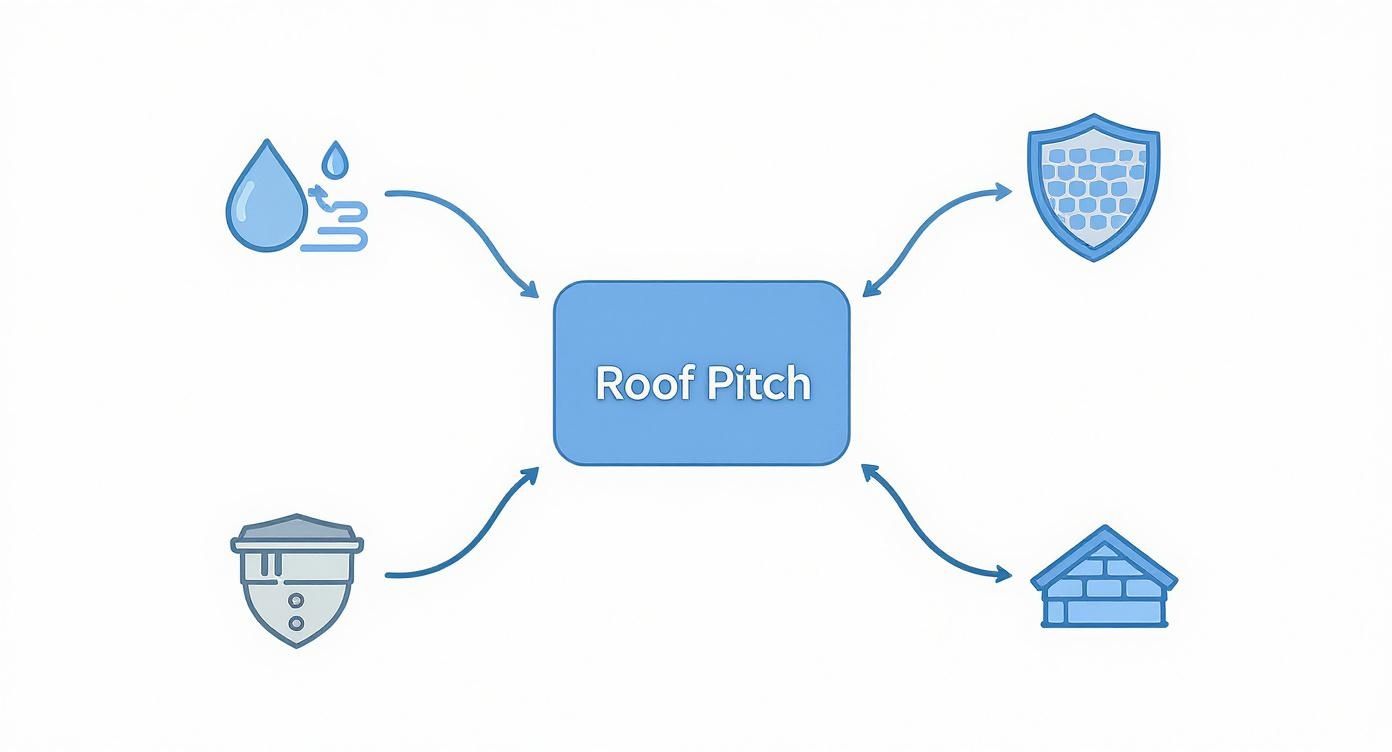

This visual really breaks down how that single number—the pitch—impacts everything from drainage and structural strength to what materials you can even use.

As you can see, every element is connected. The pitch you choose at the very beginning sets the stage for the roof’s entire life and how well it performs.

How to Measure Your Own Roof Pitch

You don't need to be a roofer to figure out your roof's pitch. One of the easiest and safest ways is to head up into your attic. From there, you can measure a rafter without ever having to climb a ladder outside.

Here’s a quick step-by-step guide:

1. Grab your tools: All you need is a tape measure and a spirit level that’s at least 12 inches long.

2. Set the level: Place the level flat against the underside of a roof rafter. Jiggle it until the bubble is perfectly centered—this means it's truly horizontal.

3. Measure the run: From one end of your level, measure exactly 12 inches along its horizontal edge and make a little mark. This 12 inches is your constant "run."

4. Measure the rise: Now, right at that 12-inch mark, measure straight up vertically to the bottom of the rafter. That number, in inches, is your "rise."

So, if you measured a vertical distance of 8 inches, you've got yourself an 8/12 pitch. It's a simple technique that takes the mystery out of it and gives you a real number to work with.

Converting Pitch to Degrees and Percentages

Although X/12 is the standard here in the U.S., you might see pitch shown in degrees or as a percentage (also called a grade), especially on international plans or in technical manuals. It’s helpful to know how they all relate.

• Degrees: This is simply the angle of the roof. For example, a 4/12 pitch is roughly 18.4 degrees, and a steep 12/12 pitch is a perfect 45 degrees.

• Percentage: You find this by dividing the rise by the run, then multiplying by 100. So for a 6/12 pitch, the math is (6 ÷ 12) 100, which gives you a 50% grade.

Understanding these conversions is key to translating design intent into reality. A plan might specify a 26.6° angle, which a builder immediately recognizes as a common 6/12 pitch, ensuring no details are lost in translation between the architect and the construction team.

To make things easier, here’s a quick reference chart to help you see how these measurements compare.

Roof Pitch Conversion Chart

Rise/Run (Pitch)	Angle (Degrees)	Slope (Percentage)
1/12	4.8°	8.3%
2/12	9.5°	16.7%
3/12	14.0°	25.0%
4/12	18.4°	33.3%
5/12	22.6°	41.7%
6/12	26.6°	50.0%
7/12	30.3°	58.3%
8/12	33.7°	66.7%
9/12	36.9°	75.0%
10/12	39.8°	83.3%
12/12	45.0°	100.0%

Having this chart handy can be a big help when you're trying to visualize what the numbers on a blueprint will actually look like on your finished home.

The idea of roof pitch is also deeply tied to local architectural styles and climate. Think about regions in the Asia-Pacific, where rapid growth drives demand for durable, easy-to-install roofing. There, pitches often fall between 30° to 60° to handle heavy rains and maintain structural integrity. This shows how pitch isn't just about looks—it’s a critical part of how a building functions in its environment. You can learn more about these factors in the global roofing market and its trends.

Common Roof Pitches and Their Uses

Now that you know how to read and calculate roof pitch, let’s see how those numbers actually look on real-world homes. A roof's slope is a defining feature, and it does more than just keep the rain out—it gives a house its architectural personality. To make sense of all the options, it helps to think of them in three main buckets: low-slope, conventional, and steep-slope roofs.

Each group serves a different purpose and is tied to specific home styles, from sleek modern designs to timeless, dramatic A-frames. Let's take a look at the most common roof pitches to see how they're used and the visual impact they make.

Low-Slope Roofs: The Modern Minimalist

Low-slope roofs, with pitches from 1/12 to 3/12, are what most people call "flat roofs," but here's a secret: no roof is ever truly flat. There always has to be a slight angle to keep water from pooling, which is a fast track to leaks and structural damage. This category is a signature of modern and mid-century modern architecture, creating those clean, horizontal lines that feel understated and sophisticated.

But that gentle angle comes with its own set of challenges. Water drains very slowly, making these roofs completely unsuitable for standard materials like asphalt shingles.

• Pitches: 1/12 to 3/12

• Best For: Modern, contemporary, and commercial buildings. Also great for porches and home additions.

• Pros: Creates a clean, minimalist look and can even provide usable space for a rooftop deck or garden.

• Cons: Needs special roofing materials like single-ply membranes (TPO, PVC) or built-up roofing (BUR) to form a waterproof seal. They are also prone to leaks if not installed perfectly.

Because low-slope systems handle water so differently, their upkeep and repair needs are unique. If you're considering this style, it's smart to get familiar with what’s involved by understanding flat roof repair costs from the get-go.

Conventional Roofs: The Versatile Standard

This is the sweet spot for most residential homes in North America. With pitches ranging from 4/12 to 9/12, conventional slopes hit the perfect balance of aesthetics, performance, and cost. They are steep enough to shed rain and light snow with ease but are still considered "walkable," which makes installation and maintenance much safer and more affordable.

This versatility is exactly why you see these pitches on so many different architectural styles.

• 4/12 to 5/12: This is the classic pitch for Ranch and Craftsman-style homes. It offers reliable drainage without adding too much height or cost.

• 6/12 to 9/12: These slightly steeper pitches are common on Colonial, Cape Cod, and the wildly popular Modern Farmhouse designs. This range gives you excellent water shedding and opens up more usable space in the attic or for vaulted ceilings.

A popular 8/12 pitch is often the choice for designs aiming for a traditional yet balanced profile. These versatile pitches work perfectly with a whole host of common materials.

Pitch Range	Common Materials	Architectural Styles
4/12 - 6/12	Asphalt Shingles, Metal Panels	Ranch, Craftsman, Bungalow
7/12 - 9/12	Asphalt Shingles, Wood Shakes, Slate	Colonial, Cape Cod, Modern Farmhouse

The flexibility of this range makes it a go-to for builders and homeowners alike. If you're exploring home styles that use these pitches, you can find some fantastic inspiration in these 10 modern farmhouse design ideas for your new home.

Steep-Slope Roofs: The Dramatic Statement

Once a roof pitch climbs past 9/12, you're in steep-slope territory. These roofs are all about dramatic, eye-catching angles and are a key part of certain historical and luxury architectural styles. Pitches like 12/12 and even higher create a powerful visual while offering unbeatable performance in harsh weather.

Their biggest advantage is their ability to shed snow and rain almost instantly, making them a top choice in regions with heavy snowfall. The aggressive angle stops snow and ice from building up, protecting the roof's structure from crushing weight.

• Pitches: 10/12 and higher

• Best For: Areas with heavy snow or rainfall.

• Architectural Styles: Tudor, Victorian, Gothic Revival, and A-Frame cabins.

• Pros: Fantastic water and snow shedding, creates tons of attic or second-story living space (hello, vaulted ceilings!), and offers a stunning look.

• Cons: Much more expensive due to needing more materials, complex framing, and specialized safety gear for installation. Material choices are also limited to things that can be securely fastened, like slate, tile, or high-end architectural shingles.

Choosing the right pitch is really about matching your home’s practical needs with the look you want to achieve, and understanding these common categories is the first step toward getting it right.

How Pitch Impacts Roofing Materials and Cost

The pitch of your roof is so much more than a design choice—it's a decision that trickles down to just about every line item in your budget. Think of the relationship between your roof's slope and its final cost as one of the most important factors in your entire home plan. A steeper pitch doesn't just look more dramatic; it demands more material, more skilled labor, and stricter safety measures. All of these things add up.

Let's put it into perspective. Imagine two houses, both with the exact same 1,500-square-foot footprint. One has a gentle 4/12 slope, while the other features a steep 12/12 pitch. That steeper roof is going to need a lot more surface area covered with shingles, underlayment, and decking to span the same horizontal distance. This is the first and most direct way a steep-slope design drives up costs.

Material Selection and Pitch Requirements

Not every roofing material works on every roof. Performance is tied directly to the roof's angle, and manufacturers are very clear about the minimum pitch requirements for their products. These guidelines exist for a simple reason: to make sure water sheds properly and doesn't cause leaks. Ignoring them won't just void your warranty; it's practically asking for water damage down the road.

Here’s a quick guide to how pitch will steer your material choices:

• Low-Slope Roofs (Below 3/12): Forget about standard shingles. Their overlapping design needs gravity's help to pull water down and away. On a nearly flat surface, water can sit and easily find its way underneath. For these roofs, you need a single, waterproof membrane like TPO, PVC, or modified bitumen. On roofs that are almost completely flat, specialized solutions like flat roof coating transformation projects are a must-have for proper protection.

• Conventional Slopes (4/12 to 9/12): This is the sweet spot. This range gives you the most flexibility and is perfect for the most popular and affordable material in the country—asphalt shingles. It's also great for metal roofing, wood shakes, and composites, opening up a huge range of styles and price points.

• Steep Slopes (Above 9/12): While you can still install asphalt shingles here, the job gets a lot harder. This is where materials like slate, clay tiles, and premium architectural shingles really shine, as their durability and secure fastening methods are built for such a steep angle.

The Hidden Costs of a Steeper Roof

Beyond just buying more shingles, a steeper roof introduces a handful of other costs that can catch homeowners by surprise. As the pitch increases, so do the complexity and risk of the installation, which directly impacts labor and equipment expenses.

A steeper roof demands more than just extra shingles; it demands extra time, specialized safety equipment, and a higher level of skill from the installation crew. These factors are directly reflected in the labor costs of your project.

Once a roof hits a pitch of 7/12 or higher, most professionals consider it "non-walkable." The crew can't just stand on the roof; they need extra gear to work safely. This is where costs start to climb.

1. Specialized Safety Gear: Workers will need harnesses, ropes, and roof jacks (a type of scaffolding) to do their job safely. The cost of renting or buying this equipment gets added to the project.

2. Slower Installation: It simply takes a lot longer to move materials and fasten them securely on a steep, angled surface. More man-hours means higher labor costs.

3. Increased Labor Rates: Many roofing companies will charge a premium for high-pitch jobs because of the added risk and skill required. This can easily add 10% to 30% or more to the labor portion of your bill.

Matching Roof Pitch To Climate And Style

Choosing the right roof pitch isn't just about picking a number off a blueprint. It's about striking the perfect balance between form and function. This is where all the concepts we've talked about—rise, run, materials, and cost—finally come together to help you make a smart decision.

By carefully weighing your local climate, the home's architectural style, and your goals for the interior space, you can land on a pitch that not only looks fantastic but performs flawlessly for decades to come.

Climate Considerations: The Functional Foundation

Before anything else, your geography dictates the rules. A smart roof pitch is one that works with your local weather, not against it.

• Heavy Snowfall Regions: If you live where winters dump feet of snow, a steep pitch of 7/12 or higher is your best friend. The sharp angle uses gravity to its advantage, helping heavy snow slide right off instead of piling up and straining your home’s structure. A lower pitch in these areas is a recipe for ice dams, which can force water back up under your shingles.

• High Wind and Hurricane Zones: For areas prone to powerful winds, a lower-profile roof is generally the safer bet. Pitches between 4/12 and 6/12 present a smaller target for the wind to grab onto, drastically reducing the risk of uplift and storm damage. Think of it as a more stable, aerodynamic design.

• Heavy Rainfall Areas: While most common pitches shed rain just fine, you'll want a slope of at least 4/12 to ensure water drains quickly and efficiently, minimizing any chance of leaks. Very low-slope or flat roofs can't get away with standard shingles; they need specialized membrane systems to keep standing water out.

Architectural Style: The Aesthetic Choice

Your roof pitch is one of the most defining features of your home's entire look. Certain pitches are practically synonymous with specific architectural styles, and getting it right is crucial for an authentic feel. Browsing different house elevation design styles for your home is a great way to see this in action.

For instance, a low, sprawling 4/12 pitch is the hallmark of a classic Ranch-style home, perfectly complementing its horizontal lines. On the other hand, you can't imagine a traditional Cape Cod or a dramatic A-Frame cabin without a steep 12/12 pitch creating that iconic silhouette.

The pitch you choose is a conversation between practicality and personality. It must first answer the demands of your climate, then it can express the architectural story you want to tell.

Interior Space: The Final Factor

Lastly, don't forget to think about how the roof's angle will shape the space inside your home. This is where roof pitch becomes a question of livability.

A steeper pitch, like an 8/12 or 10/12, can be a game-changer. It can turn a cramped attic into a functional bonus room, an extra bedroom, or a quiet home office. This is also how you get those beautiful, soaring vaulted ceilings that make a great room feel incredibly open and grand.

Conversely, a lower pitch, while often more budget-friendly to build, will naturally result in less usable height in the space directly beneath the roof.

By considering these three key areas—climate, style, and space—you can confidently choose a roof pitch that is both beautiful and built to last.

A Few Common Questions About Roof Pitch

Once you start digging into the details of roof pitch, a lot of practical questions naturally come up. Let's tackle some of the most common ones we hear from homeowners who are planning their build or a major renovation.

What Is the Most Common Roof Pitch for a House?

If you drive through most neighborhoods in North America, you'll find the sweet spot for roof pitches is somewhere in the 4/12 to 9/12 range. This is no accident—it's a fantastic middle ground that balances good looks, effective water and snow shedding, and reasonable construction costs. Pitches like 6/12 and 8/12 are especially popular choices for everything from classic ranch homes to today’s modern farmhouses.

Can You Change the Pitch of an Existing Roof?

The short answer is yes, but it’s a very involved project. Changing your roof's pitch isn't like a simple re-shingling job; it’s a major structural overhaul. The process means tearing off the old roof structure and completely rebuilding the trusses or rafters to create the new, desired slope. It's a complex and costly endeavor, usually done to gain living space (like converting an attic) or to completely transform a home's architectural character.

How Does Roof Pitch Affect Solar Panel Installation?

Roof pitch is a huge deal for getting the most out of solar panels. While the perfect angle depends on your specific latitude, a slope between 30 and 45 degrees is generally the sweet spot for maximizing sun exposure. That translates to a pitch of roughly 7/12 to 12/12. Panels can certainly be installed on lower or steeper slopes with angled mounting gear, but the roof's direction and pitch are the first things you'll want to consider for a good return on your solar investment.

A "walkable roof" is a term you'll hear contractors use. It typically refers to any pitch of 6/12 or lower. This is the slope where a properly equipped professional can work safely without needing extensive safety rigging. Anything steeper is considered a "steep slope," which requires harnesses and other specialized equipment—and that means higher labor costs for any future maintenance or installations.

---
