What Are Construction Documents? A Builder's Guide

Think of construction documents as the complete instruction manual for a building project. They're the critical link that translates an architect's vision into a tangible, buildable reality. This goes way beyond simple blueprints; these documents cover every last detail, from the structural layout all the way down to the specific type of paint for the walls.

The Blueprint For Building Success

Imagine trying to bake a complex, multi-layered cake with nothing more than a rough sketch of how it should look. You’d have no idea about the exact ingredients, measurements, baking times, or how to assemble it. The result? Unpredictable, and probably a disaster. That’s exactly what construction documents prevent from happening on a job site—they are the detailed, professional recipe for the entire build.

This comprehensive package becomes the single source of truth for everyone involved: the client, architect, engineers, contractors, and city inspectors. It's a legally binding set of plans ensuring everyone is on the same page, which is the best way to minimize confusion and avoid costly mistakes.

A well-prepared set of construction documents is the most effective tool for risk management in any building project. It proactively answers questions, clarifies expectations, and provides a clear framework for decision-making before a single shovel hits the ground.

These documents are the very foundation successful projects are built on, forming the backbone of a global construction market valued at around USD 13.57 trillion. The sheer scale of this industry shows just how many complex projects rely on this kind of precise documentation to stay on budget and on schedule. You can dig deeper into the massive scope of the construction industry in this market report.

What's The Core Purpose of These Documents?

To put it simply, construction documents boil down to three primary roles. They create a clear, coordinated plan that guides every single action taken during the building process. Let's break down their main functions in a bit more detail.

Here's a quick look at how these documents function as the project's central nervous system:

Essentially, they make sure the vision is buildable, the agreement is clear, and the whole project is legal and safe.

Why They Are So Much More Than Just Drawings

While drawings—what most people call blueprints—are a huge part of the package, they only tell part of the story. A complete set of construction documents also includes written specifications, schedules, and contractual agreements. All these pieces have to work together to create a complete guide.

For example, a drawing might show you the location and size of a window. But the specifications will tell you the window's manufacturer, model number, its energy efficiency rating (U-value), and even the exact type of sealant to use during installation. That level of detail is absolutely crucial for ensuring quality and performance.

Without it, builders are left to guess, which can quickly lead to disputes, delays, and a final product that doesn't live up to anyone's expectations. Understanding this entire package is the first step toward a smooth and successful build.

Decoding the Key Parts of a Document Set

A complete set of construction documents is a bit like a three-legged stool—if you're missing even one leg, the whole project gets wobbly. These three essential "legs" are the Drawings, the Specifications, and the Agreements. Each one has a specific job, but they all have to work together to keep things stable.

Here's an easy way to think about it: the Drawings show you what gets built and where. The Specifications detail how to build it and with what materials. And finally, the Agreements sort out the who and the when, locking in responsibilities and timelines. Let's dig into how these pieces fit together.

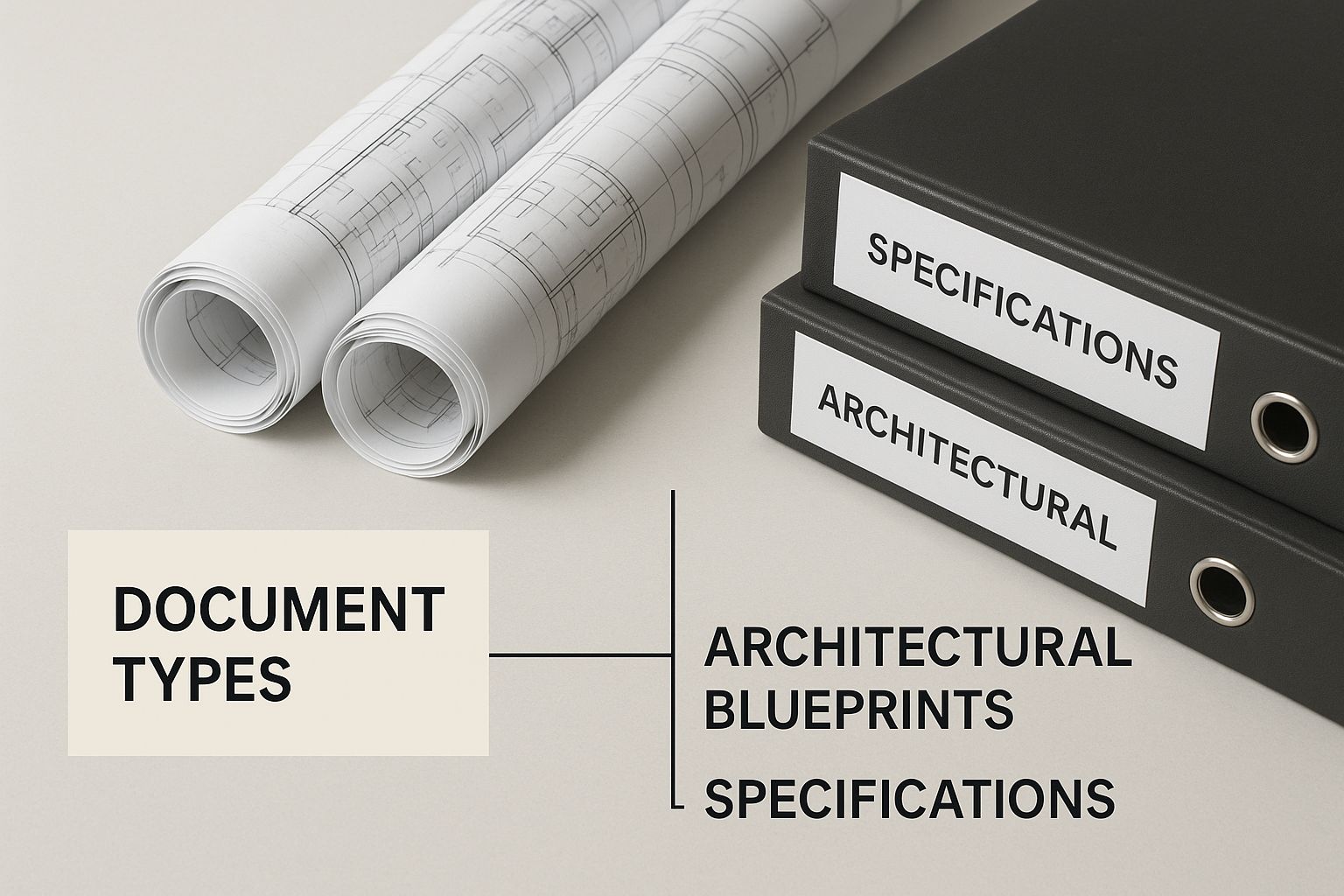

This infographic gives a great visual breakdown of all the different documents you'll find in a complete set.

As you can see, the drawings are just one part of a much bigger puzzle. They're backed up by critical written and legal documents that are just as important.

The Drawings: The Visual Blueprint

When people think of "blueprints," they're thinking of the drawings. This is the visual part of the package, the graphical map that communicates the design in a universal language builders can read. But a proper set of drawings is more than just a floor plan; it’s a whole collection of different views and systems that all work in concert.

Even today, these documents are the go-to reference on the job site. In fact, over 70% of construction pros still use paper copies in the field. The drawings are usually organized by trade or discipline:

• Architectural Drawings: These are the big picture drawings—the building's overall look, layout, and flow. They include floor plans, elevations (what it looks like from the outside), and sections (what it looks like if you slice it in half). For a deeper dive, you can explore the different types of architectural drawings in our detailed guide.

• Structural Drawings: An engineer puts these together to show the "bones" of the building. Think foundation plans, framing layouts, beams, and columns—everything needed to ensure the house is strong, safe, and stable.

• MEP Drawings: MEP stands for Mechanical, Electrical, and Plumbing. These are the technical plans showing where the HVAC system goes, how the electrical wiring and fixtures are laid out, and how the entire plumbing system for water and waste will run.

The Specifications: The Written Instructions

If the drawings show the shape and size of things, the specifications define their quality. These detailed, written instructions spell out exactly which materials, products, and installation methods must be used. There’s no room for guesswork here.

For example, a drawing might show a front door. The specifications, however, will state that it must be a "36-inch solid core fiberglass door, model X from manufacturer Y, with a Z-rated finish and specific hardware." That level of detail is absolutely essential for getting accurate bids from contractors and ensuring the final product meets your quality expectations.

Think of the specifications as the project's official rulebook. In most contracts, the specs actually overrule the drawings if there's a conflict. Why? Because they provide a level of detail that pictures simply can't. Ignoring them is a fast track to arguments and a subpar build.

Without clear specs, a builder could easily sub in a cheaper, lower-quality window to save a few bucks, even if it looks identical on the drawing. This is why specs are your most powerful tool for quality control.

Agreements and Schedules: The Legal Framework

The final pillar concerns the legal and administrative paperwork that holds the project together. This isn't about design but execution, liability, and logistics. This category covers a few key documents:

• The Agreement: This is the main contract between you (the owner) and the contractor. It clearly outlines the scope of work, the total cost, how and when payments will be made, and the target completion date.

• General & Supplementary Conditions: These are the ground rules for the entire project. They cover everything from insurance requirements and how to handle change orders to the process for resolving any disputes that might pop up.

• Schedules: Often laid out in a Gantt chart, these documents map out the project's timeline. They put all the construction tasks in sequence, showing which trade needs to be on-site when and for how long.

When you combine these three components—the Drawings, Specifications, and Agreements—you get a complete, legally binding instruction manual for your home. They all work in harmony to ensure the final building isn't just what you envisioned, but is also built to last, with the right materials, on time, and on budget.

Learning to Read the Different Types of Drawings

Every drawing in a set of construction documents tells a specific part of the project’s story. At first, it can feel like trying to navigate a new city with a complex map. But once you learn the key symbols and landmarks, you can confidently move around.

Think of the full set of plans not as one single picture, but as a collection of specialized maps. You’d use a road map for driving and a topographical map for hiking, right? In the same way, you’ll use different drawings to understand different parts of the build. Together, they create a complete guide that leaves nothing to chance.

The Foundational View: Floor Plans

The floor plan is the drawing everyone recognizes, and for good reason—it’s the project’s main roadmap. It gives you a bird's-eye view of the layout, as if you sliced the building horizontally about four feet from the ground and looked straight down. This view is essential for understanding the flow and how rooms relate to one another.

A detailed floor plan shows a lot more than just where the walls go. It pinpoints:

• Room Dimensions: The exact length and width of every single space.

• Wall Thickness: You can easily see the difference between standard interior walls and the thicker, structural exterior walls.

• Doors and Windows: Their locations, sizes, and which way they swing or slide open.

• Fixtures: The placement of permanent items like sinks, toilets, kitchen appliances, and showers.

This drawing is the starting point for nearly every trade on the job site, from the framers to the electricians. For a deeper dive, check out our guide on **how to read house plans like a pro**.

Seeing the Building from the Outside: Elevations

If a floor plan shows the building from above, an elevation shows it from the side. These drawings illustrate what the finished house will look like from the outside, with a separate drawing for the front, back, and each side. Elevations are all about defining the building’s look and feel.

They communicate visual details that a floor plan can't, like the building’s height, roof pitch, and what kind of materials are on the exterior. You’ll see exactly where windows and doors are placed, the style of the siding or brick, and details about trim and other decorative elements. This is the drawing that brings the architectural vision to life.

Slicing the Building Open: Section Drawings

Section drawings go one step further, showing what the building would look like if you cut it right in half vertically. This "slice" reveals how everything fits together on the inside, from the foundation to the roof. It’s like looking at a cross-section of an ant farm, where you can see all the hidden tunnels at once.

A section drawing is the key to understanding a building's anatomy. It exposes the structural framing, insulation, and how the floors and roof connect to the walls, providing clarity that no other drawing can offer.

This view is incredibly important for builders because it clarifies complex assemblies that will be hidden once the drywall goes up. For instance, a section can show exactly how a vaulted ceiling is framed or how a staircase is constructed, preventing guesswork and ensuring the home is built right.

Managing all these complex documents is getting easier thanks to sophisticated digital tools. The global construction software market is now valued at nearly USD 9.87 billion and is expected to keep growing. This shift highlights how much the industry is relying on digital solutions to create and share these vital plans. By mastering these different drawings, you’ll be ready to work with both traditional paper plans and modern digital platforms.

Why Specifications and Schedules Are So Important

If the drawings in your construction documents are the skeleton of the project, then the specifications are its DNA. Think of it this way: drawings show you the shape, size, and location of everything, but the specs tell you exactly what everything is made of and how it all goes together. This is where the real substance of your project lives.

These written documents are often the most critical part of the entire set. Why? Because they get rid of any gray areas. A drawing might show a window, but the specifications will lock in the exact brand, model, material, and even the required energy-efficiency rating. That level of detail is absolutely non-negotiable if you want the final product to match your vision.

Without strong specs, a builder could be tempted to swap in a lower-quality material to save a few bucks, even if it looks the same on the plans. This is why specifications are your single most powerful tool for quality control. They create a legally binding standard for every single material and task on the job site.

The Power of Detailed Written Instructions

Specifications are the project’s official rulebook. They’re meticulously organized, usually by trade or type of work, covering everything from the precise mix of concrete for the foundation to the specific brand and sheen of paint for the living room walls. This structured approach is what guarantees consistency and quality across the entire build.

Let's take a simple kitchen countertop. The drawing shows you where it goes and how big it is. The specs, however, will nail down the rest:

• Material: Is it granite, quartz, or laminate?

• Grade and Finish: What’s the required quality and surface texture?

• Supplier: Is there an approved vendor to ensure you get what you paid for?

• Installation Method: What specific adhesive and sealant must be used?

This granularity protects the project's integrity. It also means that when you get bids from different contractors, they're all pricing out the exact same materials and standards. You get a true apples-to-apples comparison.

In most construction contracts, you'll find an "order of precedence" clause. This little bit of legal language is huge—it typically states that if there's a conflict between the drawings and the specifications, the specifications overrule the drawings. That alone shows you just how important they are in defining the quality of your project.

This whole system was developed to solve age-old industry problems. Poor documentation has always been a major cause of construction delays and budget blowouts. Good specifications are the remedy, leaving no room for guesswork. You can dig deeper into how modern tools help with this by exploring market reports on construction document management.

It's helpful to see a direct comparison to really understand how these two essential documents work together.

Drawings vs. Specifications: A Quick Comparison

In short, you can't have one without the other. They are two halves of the same whole, and both are essential for a successful project.

Keeping the Project on Track with Schedules

So, if specifications define the "what" and "how," project schedules are all about the "when." A schedule is the operational heartbeat of the build. It takes the potentially chaotic process of construction and organizes it into a logical, step-by-step sequence. It’s what makes sure the right people are on-site with the right materials at the right time.

The go-to format for this is the Gantt chart, which is basically a visual timeline. It maps out every single task, how long it should take, and which tasks depend on others. For instance, the schedule makes it crystal clear that the foundation has to be poured and fully cured before the framers can even think about starting their work. This kind of logistical planning is essential to keep things moving.

An unrealistic or poorly managed schedule can send a project off the rails in a hurry, leading to expensive delays as one crew sits around waiting for another to finish. But a well-crafted schedule does the opposite—it coordinates the entire team, streamlines the workflow, and gives everyone a clear roadmap from groundbreaking to final inspection. It’s a vital part of what construction documents are designed to do: create a predictable, efficient, and successful build.

How Documents Drive the Entire Building Process

Construction documents are so much more than a stack of blueprints you create once and file away. Think of them as a living, breathing tool that actively steers every single phase of the project. Their journey starts long before the first shovel hits the dirt and doesn't end until well after the final coat of paint is dry.

In a way, they’re the project's central nervous system, sending critical instructions to every part of the team at exactly the right moment. This continuous flow of information is what turns an initial vision into a physical structure—accurately, legally, and efficiently.

Securing Accurate Bids and Budgets

Before you can even think about building, you need to know what it's all going to cost. This is the first critical job for a complete set of construction documents. When you hand contractors detailed drawings and specifications, you're giving them the power to create precise, comprehensive bids.

They aren't left guessing about the quality of the windows or the complexity of the roofline; they are pricing out the exact items and methods you’ve laid out. This turns the bidding process from a confusing guessing game into a straightforward comparison. It ensures every contractor is bidding on the exact same project, allowing you to make a true apples-to-apples evaluation and lock in a realistic budget.

Obtaining Essential Building Permits

No legal construction project gets off the ground without the blessing of your local building authorities. Construction documents are the primary evidence you submit to the city or county to secure a building permit. Officials will comb through these plans to make sure the design complies with all relevant building codes, zoning laws, and safety regulations.

This review covers everything from structural integrity and fire safety to energy efficiency. A clear, thorough set of documents makes this process infinitely smoother and faster. In fact, incomplete or conflicting information is the number one reason for permit delays, which can easily halt a project for weeks on end.

A well-prepared document set is your passport through the permitting process. It demonstrates professional diligence and a commitment to safety, giving officials the confidence they need to approve your project and allow construction to move forward.

This stage is a non-negotiable gateway. Without that permit, any work you do is illegal and could be hit with fines or even demolition orders. Your documents are your formal declaration that the project will be a safe, sound, and responsible addition to the community.

Guiding On-Site Construction Day by Day

Once permits are in hand and the team is ready, the documents shift into their most active role: the daily on-site manual. The superintendent, project manager, and every single subcontractor—from the plumber to the electrician—rely on these plans as their single source of truth.

They use the drawings to understand layouts, the specifications to confirm materials, and the schedules to coordinate their work with everyone else. This is where the real value of detailed planning shines. When a carpenter has a question about a tricky framing detail, they check the section drawings. When an electrician needs to know the exact placement for light fixtures, they pull up the electrical plan. The same principles apply to much larger jobs, as detailed in this guide to commercial building renovation, showcasing their importance across the board.

This constant referencing prevents costly on-site mistakes and ensures every last element is built exactly as the architect intended. To see how this fits into the bigger picture, check out our guide on **navigating the new home construction process**.

Evolving into As-Built Drawings

The document's lifecycle doesn't stop when the last nail is hammered. During the build, small changes are almost always necessary. Maybe a pipe had to be moved a few inches to avoid an unforeseen obstruction in the wall. These kinds of deviations are carefully recorded on the original plans.

These marked-up plans are known as as-built drawings. They are incredibly valuable because they give the property owner an exact record of what was actually built. This becomes essential for any future maintenance, repairs, or renovations, serving as the building's final, accurate map.

Common Missteps to Avoid with Construction Documents

Even the most carefully prepared set of construction documents can't save a project if they're misunderstood, ignored, or just plain mismanaged. Avoiding a few common pitfalls is every bit as important as creating a great plan in the first place. These missteps might seem small at first, but they have a nasty habit of snowballing into serious delays, busted budgets, and frustrating arguments.

One of the most dangerous assumptions is thinking the drawings are all that matter. We've talked about how drawings show you where things go and how big they are, but the specifications are what define the actual quality of materials and the standard of work.

Ignoring the specs is like building a high-performance engine with cheap, off-brand parts. It might look right on the outside, but it's guaranteed to fail when it counts. This kind of oversight is a huge driver of rework, which can eat up a staggering 22% of project costs, all stemming from bad information.

Neglecting Version Control

A construction project is a living thing, and plans often change. An architect might issue a revision to solve a problem nobody saw coming, or you as the client might request a change. Without a strict system for version control, you'll have different people on site working from different—and outdated—sets of plans. This is a fast track to chaos and building the wrong thing.

The consequences can be brutal, from walls being framed in the wrong spot to the wrong windows getting installed. Every single person on the team must be working from the most current set of documents. All older versions need to be clearly marked "SUPERSEDED" or, better yet, removed from the site completely.

The "single source of truth" can only stay true if it's singular. The moment multiple versions of the plans are floating around a job site, you no longer have a reliable guide—you have a recipe for expensive errors and a lot of finger-pointing.

Making Unapproved On-Site Changes

Another critical mistake is falling into the "we'll just figure it out on-site" trap. Look, small field adjustments happen—that's just part of building. But making big changes without going through the formal approval of a Change Order completely undermines the process.

These rogue modifications can create a ripple effect you didn't see coming. They can interfere with other trades, accidentally violate building codes, and clash with the original design.

For instance, a plumber might decide it's easier to reroute a pipe. That small shift could suddenly get in the way of structural framing or the electrical wiring that was planned for that exact same wall cavity. Documenting every change ensures everyone on the team knows what's happening and can plan for it.

At the end of the day, protecting the integrity of your construction documents from start to finish is the best way to protect your investment and make sure the home you build is the home you wanted.

Common Questions We Hear About Construction Documents

Even when you have a good grasp on construction documents, a few specific questions always seem to come up. Let's walk through some of the most common ones we get, with clear answers to help you navigate the real-world side of things.

Who’s In Charge of Putting the Documents Together?

A complete set of construction documents is a true team effort, with different specialists handling their own slice of the pie.

The Architect is usually the one leading the charge, creating the overall vision and the architectural drawings. From there, a team of engineers is brought in to design the building's essential systems:

• Structural Engineers are responsible for the foundation and framing—the bones of the house.

• Mechanical Engineers tackle the HVAC (heating, ventilation, and air conditioning) systems.

• Electrical and Plumbing Engineers lay out the wiring, outlets, pipes, and fixtures.

Finally, either the architect or a dedicated specification writer pulls together all the written specs that accompany the drawings.

What Happens if the Drawings and Specifications Don’t Agree?

It’s surprisingly common for drawings and specs to conflict with each other. A drawing might show one window type, but the written spec calls for a completely different model. So, what gives?

To handle these moments, almost every construction contract has an "order of precedence" clause. This rule almost always states that the specifications overrule the drawings. The logic is simple: specifications provide a much higher level of detail about the quality, materials, and installation methods.

But you should never just make an assumption. The right way to handle it is to submit a formal Request for Information (RFI) to the architect. This gets you a clear, documented answer before you move forward.

When you find a conflict in the plans, never guess. An RFI creates a paper trail and protects you from being on the hook for a costly mistake. Documenting the decision is just as important as the decision itself.

How Much Do Construction Documents Actually Cost?

The price for a full set of construction documents can vary quite a bit, depending on the project's size, how complex it is, and where you're building.

For a custom home, you can generally expect the architectural and engineering fees to fall somewhere between 5% to 15% of the total construction cost. That fee covers the hundreds of hours of expert work needed to produce a detailed, coordinated, and buildable set of plans that will guide your project all the way to completion.

---
