What Is a Foundation Survey?

Think of a foundation survey as the official "birth certificate" for your new home's structure. It's a hyper-precise measurement, performed by a licensed surveyor, that happens at a very specific moment in the construction timeline: right after the concrete foundation is poured and cured, but before a single wall goes up.

This survey officially confirms that the foundation's exact location, its dimensions, and its elevation line up perfectly with the approved building plans. It's the first major quality check of the entire build.

Unpacking the Purpose of a Foundation Survey

A foundation survey acts as the first critical checkpoint in a new construction project. Its entire purpose is to catch potentially massive mistakes right at the beginning, before they become incredibly expensive—or even impossible—to fix. It creates an "as-built" record, which is basically a snapshot of what actually exists on the ground versus what was drawn on the blueprints.

This isn't just a formality. It's a crucial verification step that protects everyone involved in the project, from the homeowner and the builder to the bank providing the mortgage. It’s tangible proof that the project is starting on the right foot, legally and physically.

For a quick overview of the key details, here's a simple breakdown.

Foundation Survey at a Glance

Aspect	Description
What It Is	A professional survey verifying the location, dimensions, and elevation of a newly poured foundation.
Why It's Done	To ensure compliance with property lines, setbacks, easements, and approved architectural plans.
When It's Done	After the concrete is poured but before framing begins.
Who Does It	A licensed land surveyor.

This table captures the essence, but understanding why these details matter is key to appreciating the survey's value.

Verifying Placement and Compliance

The real meat of the survey is verifying that the foundation sits exactly where it's supposed to be in relation to critical property markers. The surveyor will meticulously measure and document a few key things:

• Property Lines: Is the foundation 100% within the legal boundaries of your lot? Even an inch over can cause major legal headaches.

• Setbacks: Does the foundation honor the minimum distances from the front, back, and side property lines required by local zoning laws?

• Easements: Is the structure clear of any areas on the property designated for utility lines, drainage, or shared access?

• Approved Plans: Do the real-world measurements and angles of the foundation match the architectural blueprints to a T?

Getting this right is non-negotiable. If a foundation is poured just a few inches over a setback line, the city could slap a stop-work order on the project. At best, you're looking at a lengthy and expensive zoning variance process. At worst, they could demand you tear the whole thing out and start over.

A foundation survey provides timely assurance for all stakeholders. It's the physical proof that what was designed on paper has been correctly executed in the real world, preventing disputes and ensuring the project can proceed without legal or financial roadblocks.

Essentially, a foundation survey documents the precise location and elevation of the foundation right after it's poured. This provides a critical snapshot, ensuring the build aligns with site plans and local regulations before the next phase—framing—even begins.

Key Terms You Will Encounter

When you get the survey report, you'll see some specific industry terms. The two most important ones to know are as-built location and elevation.

The as-built location refers to the actual, physical placement of the foundation's corners on the property. Elevation refers to the height of the foundation, usually measured against a fixed benchmark (like sea level or a specific point on the property) to make sure it aligns with grading and drainage plans.

Getting a handle on these terms is the first step in seeing how this survey protects your project. To see how this fits into the bigger picture of site preparation, you can find great information on hardscapes, drainage, and site foundation topics. Understanding this context helps you see how the survey is a foundational piece (pun intended) of a stable, legally sound home.

Why This Survey Is a Non-Negotiable Step in Construction

Think of a foundation survey as your project's ultimate safety net. While an initial survey confirms the potential building area, this one confirms the reality. It's a critical checkpoint before thousands of dollars are poured into framing, plumbing, and electrical work. Without it, you're building on hope instead of verified facts.

This survey isn't just a good idea; it's almost always a mandatory requirement from the two groups that matter most: your local building authority and the lender financing the construction. They both need undeniable proof that the structure is being built correctly, safely, and legally.

Ensuring Legal and Regulatory Compliance

The foundation survey is the official document that proves your new home’s placement follows all local zoning laws. A building inspector’s job is to enforce these rules, and they rely on the surveyor's certified document to give their approval.

This one piece of paper prevents a whole host of catastrophic mistakes. Imagine the builder misreads the plans and pours the foundation just six inches over the property line. Without a survey to catch this tiny error, it might only be discovered years later, sparking a nasty dispute with your neighbor and potentially a court order to tear down part of your house.

A foundation survey stops these issues before they even start by verifying:

• Setback Compliance: The structure meets the minimum required distances from streets and property lines.

• Easement Avoidance: The foundation isn't interfering with any designated areas for utilities or shared access.

• Correct Lot Placement: The entire structure sits squarely within your legal property boundaries.

This proactive check is why a proper survey is a cornerstone of any well-managed construction project. For more on navigating this phase, our guide on creating your ultimate building inspection checklist for 2025 is a great resource. (https://www.rbahomeplans.com/post/your-ultimate-building-inspection-checklist-for-2025-1)

The Lender’s Critical Requirement

If you're financing your build, the foundation survey is often the key that unlocks the next round of funding. Most lenders will not release the funds for framing until they have a "clean" survey report in their hands.

This document acts as an insurance policy for the lender's investment. It confirms that the asset they are financing (your house) is being built without any legal defects or boundary issues that could tank its value or lead to expensive lawsuits down the road.

A project without a certified foundation survey is a huge red flag for lenders. They know that a stop-work order from the city over a setback violation can freeze a project indefinitely, tying up capital and creating a financial nightmare. By requiring the survey, they protect their investment—and in doing so, they protect you from a disastrous outcome.

A Cautionary Tale of Skipping the Survey

Consider the story of a homeowner who, trying to save a few hundred dollars, decided to skip the foundation survey. Their contractor, confident in his measurements, went ahead and started framing the house. Everything moved quickly until a neighbor, eyeing the new construction, suspected it was a little too close to their property.

The neighbor hired their own surveyor, who confirmed their fears: the new house was encroaching on their land by over a foot. The city was notified, and an immediate stop-work order was slapped on the project. The build was frozen for months.

The homeowner was left with two terrible options:

1. Try to buy the strip of land from the now-unhappy neighbor at an inflated price.

2. Pay tens of thousands of dollars to demolish the misplaced section of foundation and framing, then rebuild it correctly.

This nightmare scenario highlights a crucial truth: great projects start with great prep work. You can learn more about expert site preparation excavation to understand why getting the groundwork right is so important. That small upfront survey cost would have saved this homeowner from immense financial loss, legal battles, and incredible stress, proving it's one of the wisest investments you can make.

The Foundation Survey Process From Start to Finish

A foundation survey isn't a single event, but a carefully timed sequence of steps. Getting the workflow right helps you keep your construction schedule on track, avoid frustrating delays, and make sure everyone involved has what they need to move forward. Think of it as the process that turns your abstract blueprints into a verified, physical reality on your land.

It all starts with bringing in the right professional. Your builder or general contractor will hire a licensed land surveyor—a specialist with the legal authority and technical know-how to certify property measurements. This is definitely not a job for a handyman; it's the surveyor's official seal on the final document that gives it legal standing with city inspectors and your lender.

The real key to a smooth process is timing. This survey has to happen in a very specific window: after the concrete foundation walls are poured and cured, but before the framing crew shows up to start building vertically. This timing is absolutely critical because it captures the permanent, "as-built" footprint of your home with nothing obstructing the view.

On-Site Fieldwork: What the Surveyor Does

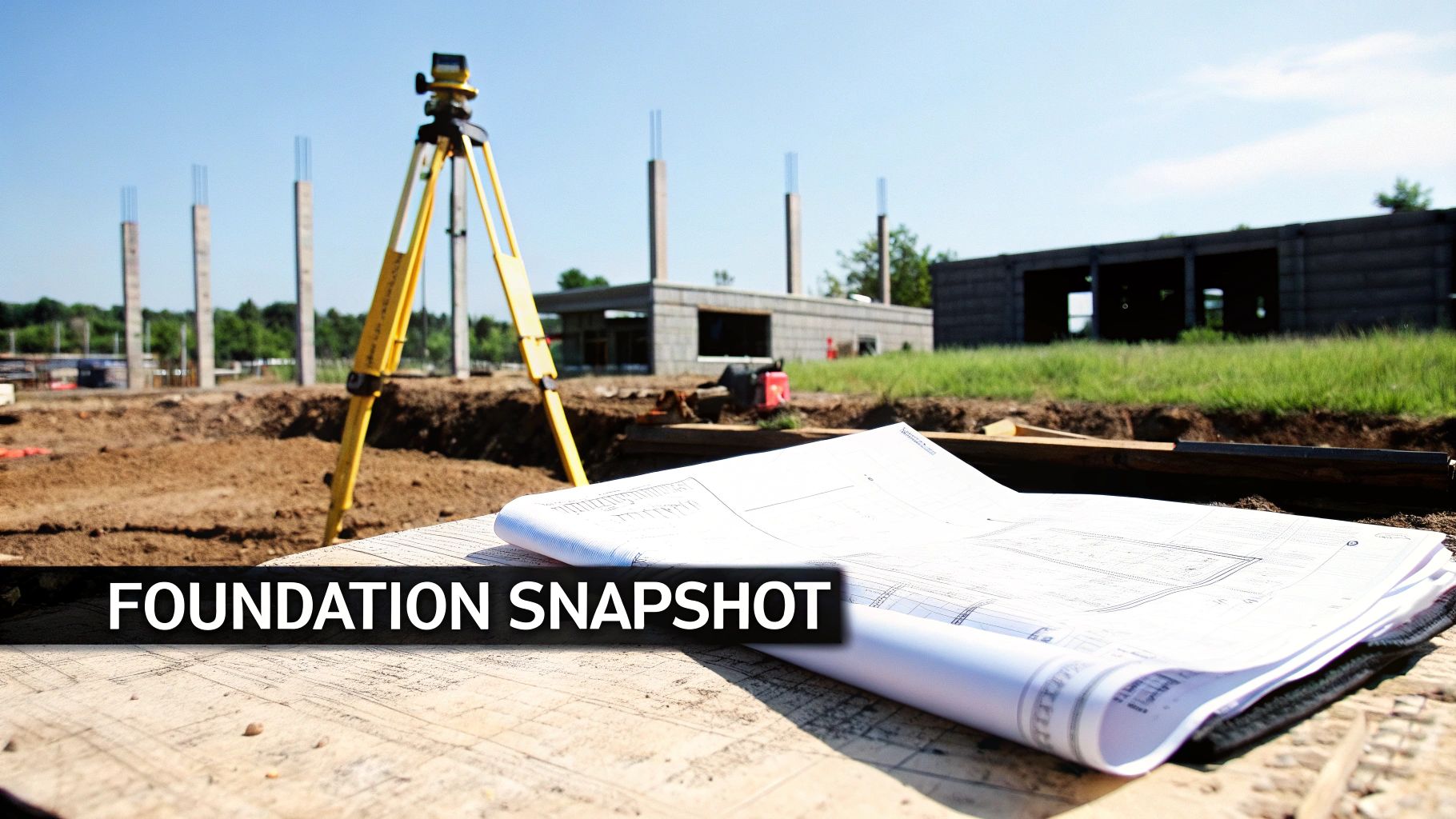

Once they arrive, the surveyor's team gets to work on the fieldwork. This is a high-tech operation that mixes old-school surveying principles with modern gear. They're not just out there with a measuring tape; they use sophisticated instruments like a total station or GPS rovers to capture incredibly precise data points.

The field crew locates the corners of your new foundation and measures their exact coordinates. They then cross-reference these real-world points with the property lines, which were probably set during an earlier boundary survey. This is how they confirm the house is placed correctly according to legal boundaries and local zoning setbacks.

A huge part of the fieldwork is checking the foundation's elevation. The surveyor measures the height of the foundation, often at several key spots like the top of the foundation wall or the garage slab. This data gets compared to the approved site plan to guarantee the house sits at the right height for proper drainage, heading off potential water problems down the road.

The Key Deliverable: The Survey Plat

After the fieldwork is done, the surveyor takes all that data back to the office to draft the final report. This is called a survey plat or certificate, and it's much more than a simple sketch. It's a detailed, legally binding document that clearly lays out their findings.

The plat is essentially a bird's-eye view drawing of your property that shows:

• The legal property boundaries.

• The exact location and dimensions of the foundation.

• Measured distances from the foundation to the property lines (the setbacks).

• Any easements or building restriction lines that might cross the property.

• The official elevation data.

• The surveyor’s professional seal and certification statement.

This single document is the official proof that your foundation was built correctly. It's the green light that the builder, inspector, and lender have all been waiting for.

The survey plat is the definitive record that connects the architectural plans to the physical land. It serves as irrefutable evidence for all parties that the construction is compliant, accurate, and ready for the next phase.

It’s also helpful to understand the different components that make up your home's base. To learn more, you can discover the different types of home foundations and see how they relate to this survey process.

Once the certified plat is delivered, copies are sent right away to the builder, the local building department, and the lender. This document often triggers the release of the next construction payment and gives the builder the official go-ahead to start framing, knowing the project is standing on solid, legally sound ground.

Decoding the Costs and Timelines

When you're planning a build, two questions always jump to the front of the line: "How much is this going to cost?" and "How long will it take?" A foundation survey is no different. Getting a handle on the costs and timelines is just plain essential for keeping your budget and your project schedule from going off the rails.

The good news? A foundation survey is one of the more affordable professional services you'll need on your journey. But the price tag isn't a simple one-size-fits-all deal; a few key things can nudge the final cost up or down.

Breaking Down the Cost Factors

You can generally expect a foundation survey to run somewhere between $250 and $700. The national average tends to float around $422. This range comes down to local market rates, the specifics of your property, and how complex the job is. Usually, the homeowner or borrower foots the bill, but this can sometimes be negotiated in the construction contract. You can discover more insights about foundation endorsements to see how this ties into lender requirements.

So, what pushes the price to one end of that range or the other?

• Property Size and Complexity: A small, square foundation on a flat, clear lot is a quick job. It's going to be cheaper than surveying a massive, complex footprint on a steep hill covered in trees.

• Location: Just like with real estate, it's all about location. Surveying costs more in dense urban areas where labor rates are higher compared to more rural spots.

• Availability of Records: If there are recent, accurate boundary survey records on file for the property, the surveyor has a solid head start. If they have to dig through old records or re-establish the property lines from scratch, that extra time will add to the cost.

• Foundation Type: A simple slab-on-grade foundation is pretty straightforward to measure. A complicated basement with multiple steps and corners? Not so much.

Establishing a Realistic Timeline

The timing of your survey is just as critical as the cost. A delay here can bring your entire construction project to a screeching halt. The survey is a crucial gatekeeper—your framing crew literally can't start their work until the certified report is signed off on.

Think of the foundation survey as a baton in a relay race. The concrete team runs their leg and hands the baton—the cured foundation—to the surveyor. The surveyor must then quickly run their leg and pass the baton—the certified plat—to the framing team. A delay here stops the whole race.

Here’s a typical timeline you should plan for:

1. Scheduling the Surveyor (1-2 Weeks): Good surveyors are busy. As soon as you have a date for the foundation pour, get on the phone and schedule your surveyor to lock in your spot.

2. On-Site Fieldwork (2-4 Hours): The actual measuring on-site is the quickest part. A surveyor can usually get all the data they need in a single morning or afternoon.

3. Drafting and Certification (2-5 Business Days): Back in the office, the surveyor processes the data, draws up the survey plat, and puts their professional seal on it. This turnaround can vary a bit depending on how busy their office is.

From the day of the fieldwork to getting that final certified document, a realistic window is 3 to 7 business days. It's absolutely vital to bake this time into your project schedule to ensure a smooth handoff from the foundation crew to the framers. This document is a key piece of the puzzle, and for a bigger picture, check out the ultimate building permit checklist to see exactly where it fits in.

Comparing Foundation Surveys to Other Land Surveys

The world of land surveying can feel like a maze of overlapping terms. If you're building a home, it's easy to get confused about which survey you need and when. Getting this right is critical, as ordering the right service at the right time prevents costly delays down the road.

Think of different surveys as specialists you bring in at specific stages of your project. A foundation survey is the expert you call for a very precise check-up during construction. Most other surveys happen long before you even break ground.

Boundary Survey: The Legal Blueprint

Before any dirt is moved, you almost always start with a Boundary Survey. Its one and only job is to officially establish the legal property lines of your land. A surveyor researches historical records and deeds, then physically marks the corners of your lot.

This survey creates the legal "sandbox" you are allowed to build in. It tells you exactly where your property begins and ends, but it says nothing about what’s inside that sandbox or what you plan to build there.

Topographic Survey: Mapping the Terrain

Next up is often the Topographic Survey. If the boundary survey is the outline of the sandbox, the topographic survey maps all the hills, valleys, and features within it.

It captures the lay of the land, including:

• Elevation changes and slopes

• Trees, large rocks, and other natural features

• Existing structures, roads, and utility lines

Architects and engineers use this data to design a house that works with the land, ensuring proper drainage and a stable foundation. It's a pre-construction survey that directly informs the design phase.

ALTA/NSPS Survey: The Lender’s Deep Dive

An ALTA/NSPS Land Title Survey is the most exhaustive type of survey you can get. Lenders and title companies often require it for commercial properties or complex residential projects. It combines elements of a boundary and topographic survey but goes much, much deeper.

This survey documents everything from property boundaries and easements to encroachments and improvements, all compiled to a strict national standard. It’s designed to give the title company enough information to insure the land and mortgage without exceptions.

A foundation survey, on the other hand, isn’t about defining boundaries or mapping the terrain before you build. Its purpose is all about verification. It checks that the physical foundation, as it sits in the real world, perfectly matches the approved plans and is correctly placed within those established property lines.

It’s the "as-built" confirmation that tells everyone the construction is proceeding exactly according to plan.

To make things clearer, let's break down the key differences between these common surveys.

Comparison of Common Land Surveys

Understanding the key differences between a Foundation Survey and other survey types.

Survey Type	Primary Purpose	When It's Done	Key Deliverable
Foundation Survey	Verifies the exact location, dimensions, and elevation of the new foundation against plans.	During Construction (After pour, before framing)	A plat showing the "as-built" foundation relative to property lines.
Boundary Survey	Establishes and marks the legal property lines and corners of a parcel of land.	Before Construction (Planning/Design Phase)	A map defining the legal perimeter of the property.
Topographic Survey	Maps the elevation, contours, and physical features of the land.	Before Construction (Design Phase)	A detailed drawing of the land's surface and features.
ALTA/NSPS Survey	Provides comprehensive data for title insurance, meeting strict national standards.	Before Closing/Construction (Due Diligence)	A highly detailed map meeting lender and title company requirements.

Ultimately, these surveys aren't interchangeable; they are sequential parts of a successful building project. You start with a boundary survey to know your limits, use a topographic survey to design the home, and then perform a foundation survey to prove you built it right. Each plays a distinct, non-negotiable role in creating a legally compliant and structurally sound home.

The Long-Term Value of Your Foundation Survey Document

It’s easy to file away your foundation survey with all the other construction paperwork and just forget about it. But this document is so much more than a one-time checkpoint. It’s a permanent record that offers tremendous value for the entire life of your home.

Think of the survey as a "time capsule" of your home's structural beginnings. It captures the precise state of your foundation at a single, perfect moment—brand new and untouched. Over time, that simple compliance document transforms into a crucial asset for future projects, potential disputes, and long-term maintenance.

A Baseline for Structural Health

Over the decades, every house settles, shifts, or gets affected by soil changes. The elevation data on your original foundation survey provides an invaluable baseline to measure against. If you ever suspect foundation issues down the road, a new survey can compare current elevations to the original ones, giving you concrete proof of any movement.

Because no foundation is ever perfectly level due to normal construction variances, engineers rely on this initial data to track changes over time. If problems like wall cracks or doors that stick suddenly appear, a new survey can pinpoint the exact extent of the settling. This objective data is exactly what you need to validate a home warranty or insurance claim. You can learn more about the benefits of a foundation elevation survey and how the pros use this data.

This comparison can be the difference between just guessing there's a problem and proving it with hard numbers.

An Essential Tool for Future Projects and Disputes

Your foundation survey is a vital document for any future modifications or additions. When you’re planning an extension, a new deck, or even significant landscaping, this document shows the exact "as-built" location of your home. This ensures any new work respects property lines and easements.

It also serves as powerful evidence in potential property disputes. Should a neighbor ever question a boundary or where a fence should go, your survey provides an official, certified record of your home's placement relative to the legal property markers.

The foundation survey is not merely a snapshot in time; it is a foundational asset for your property. It provides a permanent, authoritative reference point that protects your investment, simplifies future improvements, and offers peace of mind for decades to come.

Ultimately, this document is one of your property's most important historical records. Keeping it safe and accessible ensures you can protect and enhance your home's value for years, making it one of the smartest investments in your entire construction process.

Your Top Questions About Foundation Surveys, Answered

Building a home brings up a lot of questions, especially around the technical steps. To clear things up, we've put together answers to some of the most common questions we hear about foundation surveys and why they're such a big deal.

Who Is Responsible for Ordering the Survey?

Great question. The builder or general contractor is almost always the one to order the foundation survey. They're steering the ship, and they know the exact moment to get it done—right after the concrete has cured but before the framers show up.

But while the builder schedules it, the homeowner or borrower typically pays for it. You’ll usually see this cost bundled into your overall construction loan expenses. It's always a good idea to double-check this detail in your building contract.

What Happens if the Survey Finds a Problem?

First off, don't panic. Finding a problem is actually the whole point of doing the survey in the first place. If the surveyor discovers the foundation is accidentally crossing a setback line, property boundary, or an easement, all construction has to stop right away.

A problematic survey isn't a failure; it's the system working exactly as it should. It catches a potentially catastrophic error at the earliest possible stage, saving you tens of thousands of dollars and months of headaches compared to finding it later.

How to fix it depends on how big the error is. Sometimes, it might just mean applying for a zoning variance with the city. In a worst-case scenario, it could involve the tough decision to demolish and re-pour the section that’s out of place.

Can I Use an Old Survey Instead of a New One?

Nope, definitely not. A foundation survey is what's known as an "as-built" survey. Its job is to document the actual, real-world location of the brand-new foundation after it has been poured.

Older surveys, like the boundary or topographic surveys done before digging started, served a different purpose. This one is a unique, real-time snapshot that lenders and building inspectors need to see before they give the green light for framing to start.

How Long Is a Foundation Survey Valid?

A foundation survey is a permanent part of your property's history—it doesn't expire. Think of it as a historical document that records the foundation's exact location and elevation on the day it was measured.

This document stays valuable for the entire life of your home. It can serve as a crucial reference for any future additions, landscaping projects, or if a property line dispute ever comes up with a neighbor.

---
