How To Read House Plans: Your Ultimate Guide

Learning to read house plans is a lot like learning a new language. At first, it's all just a jumble of lines, symbols, and notes. But once you understand the basic vocabulary—the symbols, lines, and scales that represent real-world parts of a home—you can start to see the full picture.

Your First Look at a Set of Plans

Cracking open a full set of architectural blueprints for the first time can feel a little intimidating. My advice? Don't try to digest it all at once. Think of it like a book. You wouldn't just flip to a random page in the middle; you'd start with the cover and the table of contents to get your bearings. The same idea applies here.

The very first thing you should look for is the title block. This is a boxed-off section, usually on the cover sheet or tucked into the bottom-right corner of every single page. It’s essentially the project's ID card and gives you all the crucial info at a glance.

You'll find key details like:

• Project Name or Address: The specific identification for the build.

• Architect/Designer: The firm or person who created the plans.

• Revision Dates: This is a big one. It’s a log of all the changes made, so you can be sure you’re looking at the most current version.

• Sheet Number: Each page has a unique number (like A-1, A-2, S-1) so you can easily reference it.

Navigating the Different Pages

Once you're comfortable with the title block, you can start digging into the actual drawings. A complete set of plans isn't just one big drawing; it's a collection of different views, each with a specific job. If you know what each type of sheet is for, you can find what you need quickly instead of getting lost in the details.

From my experience, the biggest mistake people make is trying to absorb everything at once. Your first goal is just to build a mental map of the whole document set. Get familiar with the purpose of each main drawing, and you'll know exactly where to look when a question pops up later.

A standard set of residential plans is almost always organized in a logical order, moving from the big picture down to the fine details. You'll typically start with a view of the entire property and then "zoom in" to the specifics of the structure, floor by floor.

This progression makes the whole process much more manageable. Here’s a quick rundown of the different sheets you'll find in a typical set of house plans and what they show.

Quick Guide to House Plan Sheets

Every drawing in a set of blueprints tells a different part of the story. This table is a handy reference for understanding what each sheet is designed to communicate.

Drawing Type	Purpose and Key Information
Cover Sheet	This is your starting point. It has the title block, a full list of all drawings in the set, and sometimes a 3D rendering of the finished house.
Site Plan	A top-down, "map" view of the whole property. It shows where the house sits, property lines, setbacks, the driveway, and any major landscaping features.
Floor Plans	The drawing everyone recognizes. It's a bird's-eye view of each level, showing room layouts, wall dimensions, door and window locations, and fixtures.
Elevations	These are the exterior views, showing what the house will look like from all four sides (front, rear, left, and right). You'll see exterior materials, window styles, and roof pitches here.
Sections	Imagine slicing the house in half like a cake. A section drawing shows you that cutaway view, revealing how it's built, including ceiling heights, foundation details, and how the walls are constructed.
Schedules	These are detailed lists or tables that specify every single door, window, and finish in the home, often with model numbers, sizes, and other notes.
Structural Plans	This is the "skeleton" of the house. These plans detail the foundation, framing (walls and floors), and roof structure that hold the entire building up.

Knowing this basic layout will help you navigate any set of plans with confidence, whether you're building a new home, planning a renovation, or just satisfying your curiosity.

How to Actually Read a Floor Plan

The floor plan is the heart of any home design—the bird's-eye view that truly reveals the home's soul. When you first look at one, the best way to start is by getting your bearings. Find the main entrance and picture yourself walking right through the front door. This simple act of visualization is the secret to turning a flat, two-dimensional drawing into a space you can mentally walk through.

From there, start tracing the paths you'd take every single day. How many steps is it from the garage to the kitchen when your arms are full of groceries? What's the journey from your bedroom to the coffee maker first thing in the morning? Thinking through this flow and circulation helps you spot potential frustrations before they're set in concrete, like a ridiculously long hallway or a main walkway that cuts awkwardly right through the middle of the living room.

Interpreting Walls and Dimensions

Next up, let's look at the lines that define the space. The thicker lines you see almost always represent the exterior walls. These are the heavy lifters—they're load-bearing and hold the insulation. The thinner lines are your interior partition walls, which simply divide one room from another. You'll also spot dimension strings, which are the lines with numbers on them running parallel to the walls. These numbers are the most critical pieces of information on the entire plan, giving you the exact, real-world measurements for every room.

A common mistake I see people make is completely ignoring the swing of the doors. That little curved arc on the plan shows you which way a door opens and, more importantly, how much floor space it will hog. Ask yourself:

• Does this door swing into a tight hallway, creating a bottleneck?

• Will it smack into another door or block access to a closet?

• Could a pocket door or a barn door be a smarter choice for a cramped spot?

This simple check can save you a daily headache. And being able to read these plans is a vital skill. The home renovation market, which stood at $1.99 trillion globally, is projected to hit an incredible $2.66 trillion by 2032. With North America holding a 33.34% share, it’s clear how many projects rely on this kind of expertise.

Visualizing the Living Space

Now, let's move from the technical stuff to how you'll actually live in the home. Start imagining placing your furniture in each room. Use those dimensions you found to see if your king-sized bed, sectional sofa, or dining room table will genuinely fit. And don't just see if it fits—see if it fits comfortably. Remember to leave space to walk around your furniture. A good rule of thumb is to have a minimum of 30-36 inches for any major pathway.

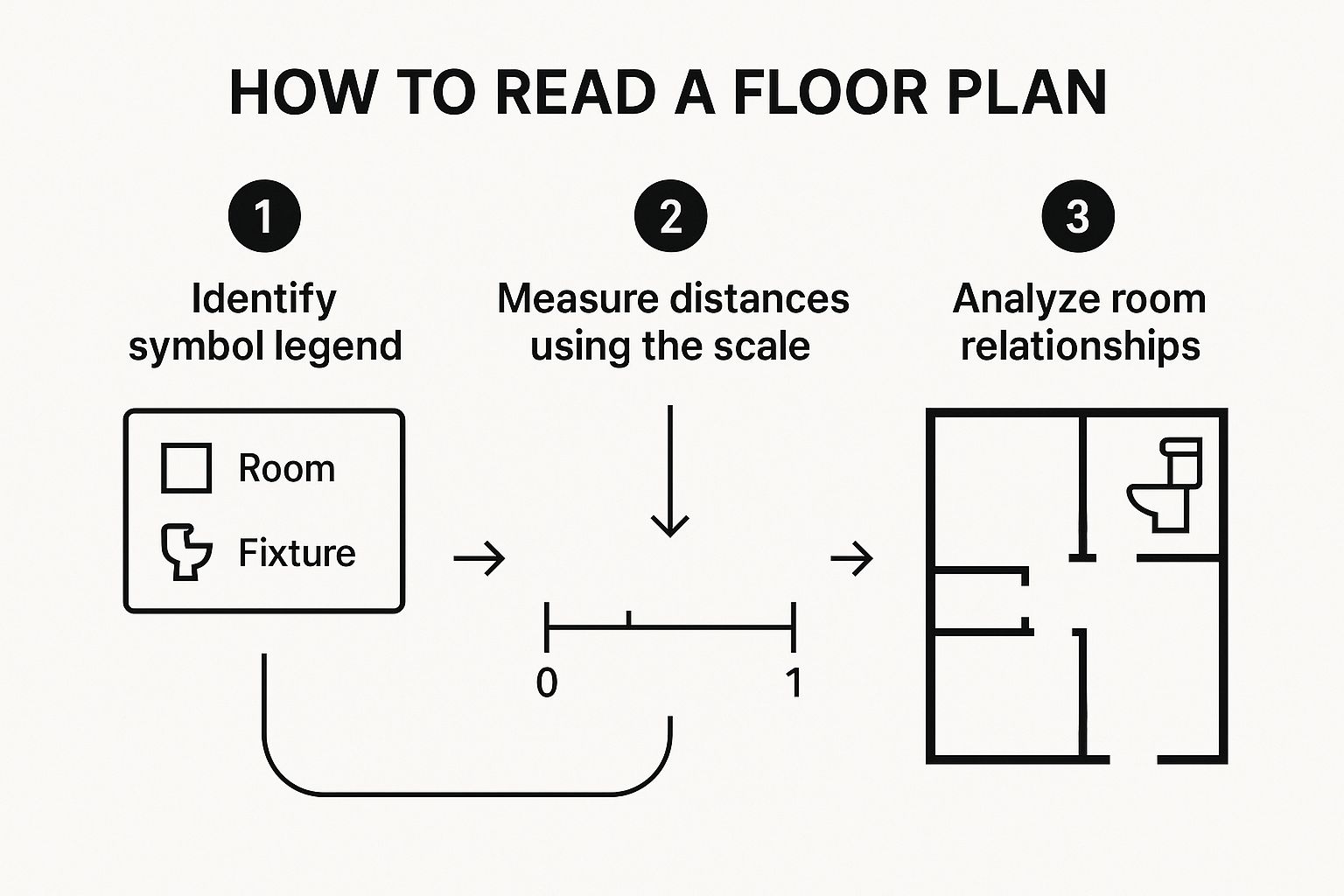

The image below gives a simple, three-step approach to breaking down any floor plan, from spotting symbols to analyzing the overall layout.

This process helps you shift from just identifying parts to really analyzing how the spaces work together, which is what great home design is all about. If you're just getting started, you might find our quick guide for beginners on reading blueprints helpful.

A floor plan isn't just about what fits; it's about how the space feels. A room might technically be large enough for a sofa, but if the only wall to put it on is directly opposite the front door, that room will never feel private or cozy. Always consider sightlines and how different rooms connect visually.

When you combine a solid analysis of the dimensions with this kind of practical visualization, you start to see house plans not as abstract drawings, but as a direct preview of your future life within those walls.

Decoding Architectural Symbols and Notes

Architectural drawings can look incredibly dense at first glance. They rely on a unique visual language to cram a ton of information onto a single page. This section is your decoder ring, designed to help you make sense of the shorthand that architects, electricians, and plumbers use every day.

Think of these symbols as a universal alphabet for the construction world.

Instead of writing out "double-hung window" or "kitchen sink" over and over, designers use standardized symbols. A simple circle with two lines might represent a light fixture, while a circle with four lines usually means a ceiling fan. You'll quickly get the hang of spotting these patterns across different drawing sheets. While there are countless symbols out there, focusing on the most common ones will give you a solid foundation.

Must-Know Electrical Symbols

The electrical plan is often the most symbol-heavy sheet in the entire set. It can look like a complex circuit board, but it’s actually pretty straightforward once you know what you're looking for. These symbols pinpoint the location of every single switch, outlet, and fixture in the house.

Here are a few you'll see on almost every plan:

• Standard Outlet: This is a circle with two parallel lines sticking out. These are your everyday power outlets for lamps, TVs, and charging your phone.

• GFI Outlet: You'll see the same symbol but with "GFI" written next to it. This stands for Ground Fault Interrupter, a special safety outlet that shuts off the power if it senses moisture. You'll always find these in kitchens, bathrooms, garages, and outdoor areas to meet building codes.

• Light Switch: Look for a simple "S" or even a dollar sign symbol ($) near a doorway. Sometimes you'll see S₃ or S₄, which indicates a 3-way or 4-way switch. These are what allow you to control a single light from multiple spots, like at the top and bottom of a staircase.

Here's a pro tip I always share with clients: Do a mental walkthrough of the electrical plan. Imagine yourself walking into a room and reaching for the light switch. Is it in an intuitive spot? Or is it tucked away in an awkward corner? This simple exercise can save you a lot of daily frustration and helps you assess the real-world convenience of the layout.

Interpreting Plumbing and General Notes

Beyond the electrical plan, you'll find symbols for plumbing fixtures and other key building components. A simple circle can denote a floor drain, while a rectangle with an oval inside it typically shows a bathtub. A toilet is one of the easiest to spot—it usually looks just like a top-down view of the real thing.

Just as important are the abbreviations and notes scattered across the plan. Don't skip over these! They provide crucial context and quick instructions from the designer.

Common Plan Abbreviations

Abbreviation	Meaning	Where You'll Find It
W/D	Washer/Dryer	Usually found in a dedicated laundry or utility room.
W.H.	Water Heater	Look for this in a utility closet, basement, or garage.
REF	Refrigerator	This marks the designated space for your fridge in the kitchen.
CL	Closet	Used to label all the different storage spaces.

Of course, these symbols and notes are just one piece of the puzzle. To see how they fit into the bigger picture, check out our guide on the seven key types of architectural drawings.

Getting comfortable with this visual language is a game-changer. It takes you from just seeing a layout to truly understanding the home's functionality, safety features, and day-to-day convenience. This knowledge empowers you to ask smarter questions and make sure the final home is exactly what you envisioned.

Understanding Elevations and Section Views

If a floor plan gives you the home's footprint, think of elevation and section views as the drawings that bring its character and personality to life. A floor plan is the map, but these views are the stunning photographs of your destination. They're absolutely crucial for understanding the home's vertical scale and making sure the final build looks exactly how you envisioned it.

An exterior elevation is simply a flat, head-on view of the house from one side. A complete set of plans will give you four of these: front, rear, left, and right. This is where you really see the home's style take shape, and it's where the architect details all the important exterior finishes.

Keep an eye out for notes on these drawings that call out specific materials, like:

• Brick or stone veneer

• Vinyl or fiber cement siding

• Stucco finishes

• Roofing materials (e.g., architectural shingles or a standing-seam metal roof)

These drawings also lock in the style and placement of windows and the exact pitch of the roof—both of which have a huge impact on the home's curb appeal. A great way to get a feel for how these elements work together is to check out different house elevation design styles for 2025 and see what catches your eye.

Peeking Inside with Section Views

So, if an elevation shows you the outside, a section view is like slicing the house right down the middle so you can see how it all fits together on the inside. You'll find these marked on the floor plan with a "cut line"—a long line with an arrow showing the direction you're looking from. This view is your key to understanding the home's vertical relationships.

A section view is where you confirm all the critical vertical dimensions. It clearly shows the ceiling heights for each floor, how the different levels stack up, and the nitty-gritty construction of the roof and foundation. It’s also the best drawing for visualizing how a staircase is built and how it travels between floors.

I see it all the time—a client gets nervous that a room might feel too "closed in." A quick glance at the section view can instantly tell us if we're working with a standard 8-foot ceiling or a more open 9 or 10-foot height. This single drawing takes all the guesswork out of how a space will feel vertically.

Today, the rise of 3D floor plan services has made it even easier to visualize these views. While this technology has been popular in North America for a while, we're seeing it expand quickly in Europe, especially in the UK and Germany. Homebuyers there are increasingly using 3D plans to get a clearer, more engaging look at elevations and sections. For more details on this trend, you can check out the global 3D floor plan service market report.

Once you combine what you've learned from the floor plan with these vertical views, you're no longer just reading house plans—you're truly visualizing your future home in three dimensions.

Making Sense of Scale and Dimensions

A house plan without a proper scale is just a sketch. To really start reading these drawings like a pro, you have to understand how the lines on the page translate to the real world. This is where scale and dimensions come in, turning an abstract drawing into a concrete, buildable design.

The most common architectural scale you'll see on residential plans is 1/4" = 1'-0". This simply means that every quarter-inch you measure on the paper represents one full foot in reality. So, if a bedroom wall measures three inches long on the plan, that wall will be twelve feet long when it's built.

Grasping this ratio is absolutely key. It’s what lets you use a special architectural ruler—or even just a standard tape measure in a pinch—to get a rough idea of room sizes and how your furniture might fit.

Trust the Numbers, Not the Ruler

While measuring the drawing is great for a quick visualization, here’s a critical piece of advice I give every client: Always trust the written dimensions over any measurement you take yourself. The numbers printed on the dimension strings are the legally binding measurements the builder will follow. Period.

Drawings can get stretched, shrunk, or distorted when they're printed or converted to a digital file. This makes any direct measurement you take unreliable. The written numbers—like 12'-6" for a twelve-and-a-half-foot wall—are the source of truth.

I’ve seen it happen time and again: a homeowner measures a printed plan, thinks a room is slightly smaller or larger than it is, and it leads to unnecessary panic or buying furniture that won't fit. Just remember, the numbers on the dimension lines are the precise instructions for your builder.

This obsession with precision is what the entire construction industry is built on. It’s no surprise that the global floor plan software market, valued at $1.2 billion in 2023, is projected to hit $3.5 billion by 2032. With North America holding a 35% market share thanks to a strong real estate sector, the demand for tools that guarantee dimensional accuracy is only growing.

Don't Skip the General Notes

Finally, whatever you do, don’t overlook the general notes section. This is usually a block of text you'll find on the cover sheet or one of the first few pages. It’s packed with vital information that isn't shown visually on the plans themselves.

This section is where you'll find crucial details like:

• Building Code Information: It will specify which building codes the plans were designed to meet.

• Material Specifications: This covers important details on concrete strength, lumber grades, and insulation R-values.

• Default Conditions: These are notes that apply everywhere on the plan unless another note says otherwise, like a standard ceiling height.

Ignoring these notes is a recipe for misunderstandings and costly mistakes down the road. They provide the essential context you need to interpret the drawings correctly, making sure the project gets built safely and to the right quality. Once you get the hang of scale, dimensions, and notes, you’ll have the confidence to make sure everything is accurate from start to finish.

Common Questions About Reading House Plans

Even after you get the hang of the basics, looking at a full set of construction drawings can still feel a little overwhelming. A few common questions always seem to pop up. Think of this as a quick guide to clear up those last few points of confusion so you can move forward with confidence.

What Do All the Different Lines Mean?

One of the first things people ask is about all the different lines on a floor plan. Architects use a simple but smart technique called lineweight to add clarity and show how different parts of the structure relate to each other.

Here’s the breakdown:

• Thick, Solid Lines: These are the most important lines on the page. They represent anything that’s been “cut” through to create the view. On a floor plan, that means the walls. On a cross-section, you'd see the walls, floors, and roof shown this way.

• Thin, Solid Lines: These show surfaces and objects you can see beyond the main cut. Think about things like the faces of kitchen cabinets, countertops, or the trim around a window.

• Dashed Lines: These are your secret weapon for understanding what’s happening above or below. A dashed line might show the location of a structural beam in the ceiling above or outline the overhang of a second-floor balcony.

Why Do Some Details Seem to Be Missing?

You might be staring at a floor plan, wondering, "Where are the model numbers for the windows?" or "What kind of hardware is on the master bedroom door?" It's a common point of confusion, but there’s a good reason for it.

That detailed information lives on the schedules pages. These are basically spreadsheets that list out every single door, window, finish, and fixture for the entire project. You'll find sizes, manufacturers, model numbers, colors, and any special notes from the architect.

A great set of plans separates information logically. The floor plan shows where things go, and the schedules tell you what they are. This prevents the main drawings from becoming an unreadable mess of text and callouts.

If you can't find a detail on the main drawing, the schedules are always your next stop.

What Should I Do If I Find a Mistake?

What happens when you’re looking over the plans and something just doesn't add up? Maybe a set of dimensions doesn't equal the total, or a note on one page seems to contradict a drawing on another.

First, don't panic. Second, speak up right away.

Point out the issue to your architect, designer, or builder as soon as you spot it. It is always much, much cheaper and easier to fix a line on a piece of paper (or a digital file) than it is to tear down a wall that’s already been framed.

Clear, early communication is the best way to keep small on-paper issues from turning into big, expensive on-site headaches. A good building team will be glad you have a sharp eye and brought it to their attention.

---
